180-215
Max. feeding size(mm)100-380
Capacity(t/h)160-220
machine power(kw)
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

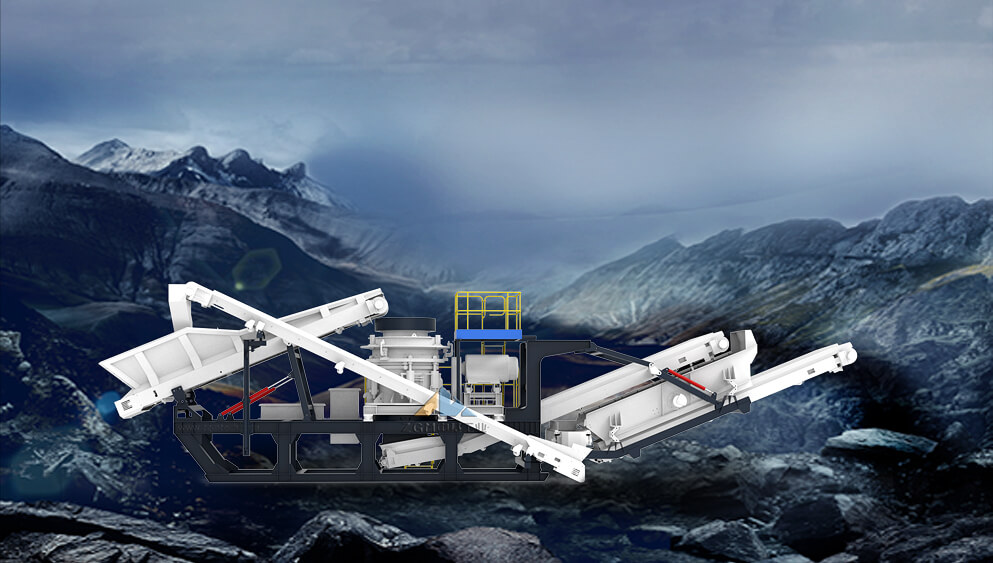

MK-HP/DG series module type cone crushing mobile station integrates the cone crusher and belt conveyor in one steel frame which has superior crushing ability.Focusing on its convenience and flexibility is to realize fast installation.The steel structure of the crushing station is provided in modular form, variety of process configuration schemes,integrates the feeder, crushers and conveyor system which can be used singly or multi-combined ,to form different crushing and screening systems according to demand.

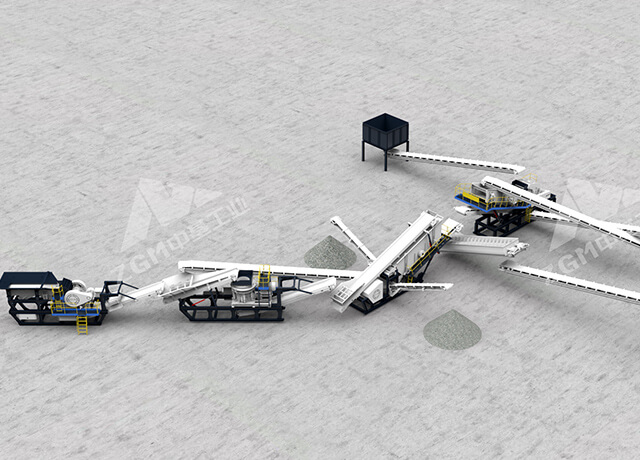

Variety of process configuration schemes, can be used singly or multi-combined ,to form different crushing and screening systems according to demand.

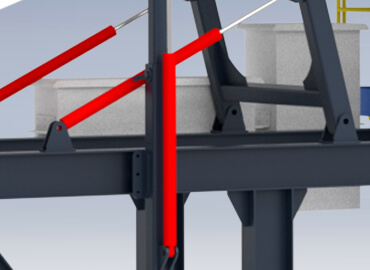

The design of module type cone crushing mobile station focus on the convenience and flexibility.The steel frame in modular form can realize fast installation.
The compact modular structure design effectively reduces the site area and enables more accurate and smooth equipment connection.

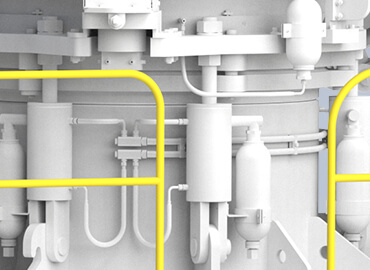

The whole frame structure uses the buffering and damping device,which make the whole machine stable during the operation of the machine.
| Model | Main machine model |
Main belt conveyor |
Feeding capacity(t/h) |
Max. feeding size(mm) |
Capacity(t/h) | Discharge opening adjustment range (mm) |
Main machine power(kw) |
Whole machine power(kw) |
Transportation dimension(L×W×H) (mm) |
| MK-HP300S | HPS300 | B1000*9米 | 500 | 180 | 100-380 | 10-45 | 220 | 350 | 18000*3500*4700 |
| MK-DG250S | DG250 | B1000*9米 | 500 | 215 | 100-380 | 10-45 | 220 | 350 | 18000*3500*5300 |
| MK-DG160S | DG160 | B1000*9米 | 500 | 185 | 100-380 | 10-45 | 160 | 290 | 18000*3500*4350 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
