Specialize in providing total solutions for manufacture and technical upgrades Of equipment for aggregates, mining, industrial powder, construction waste processing.

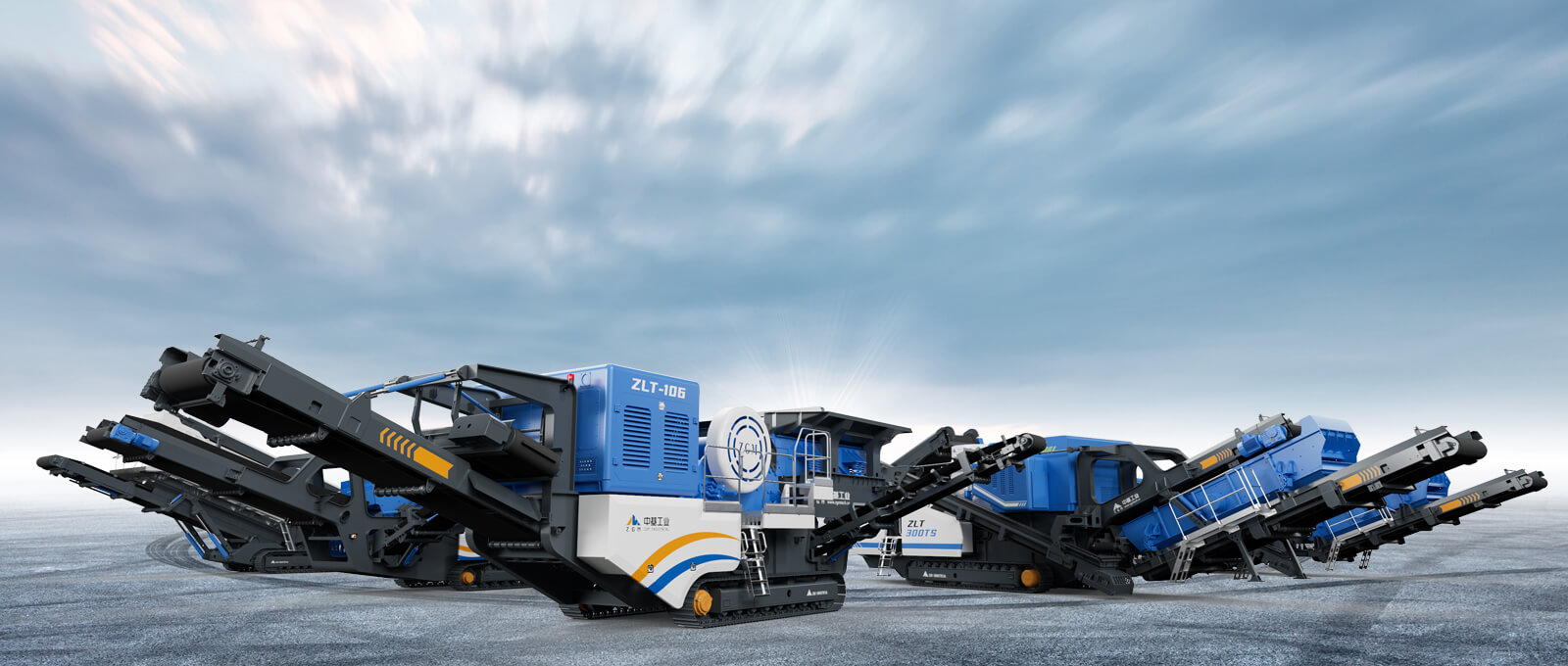

ZGM crawler mobile crusher's heavy-duty crawler chassis delivers superior climbing/obstacle-crossing capabilities and all-terrain mobility. Features quick site relocation, high-performance crusher and modular configuration for rapid function expansion. Achieves multi-stage crushing & precision screening in one intelligent crawler crusher.
ConsultationSame-Day Production Launch
20% Capacity Increase
300% Wear Resistance Improvement
15% Energy Consumption Reduction
560
150-500
141.4
600
200-400
239.4
225
115-440
267.12
500
250-500
63.5
200
150-400
57.5

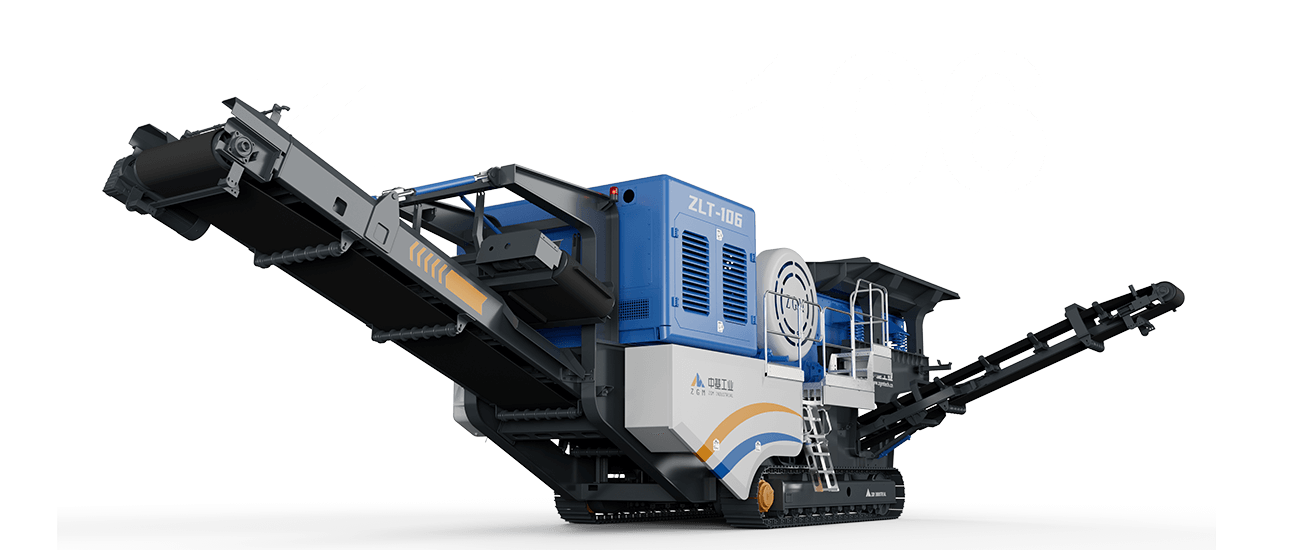

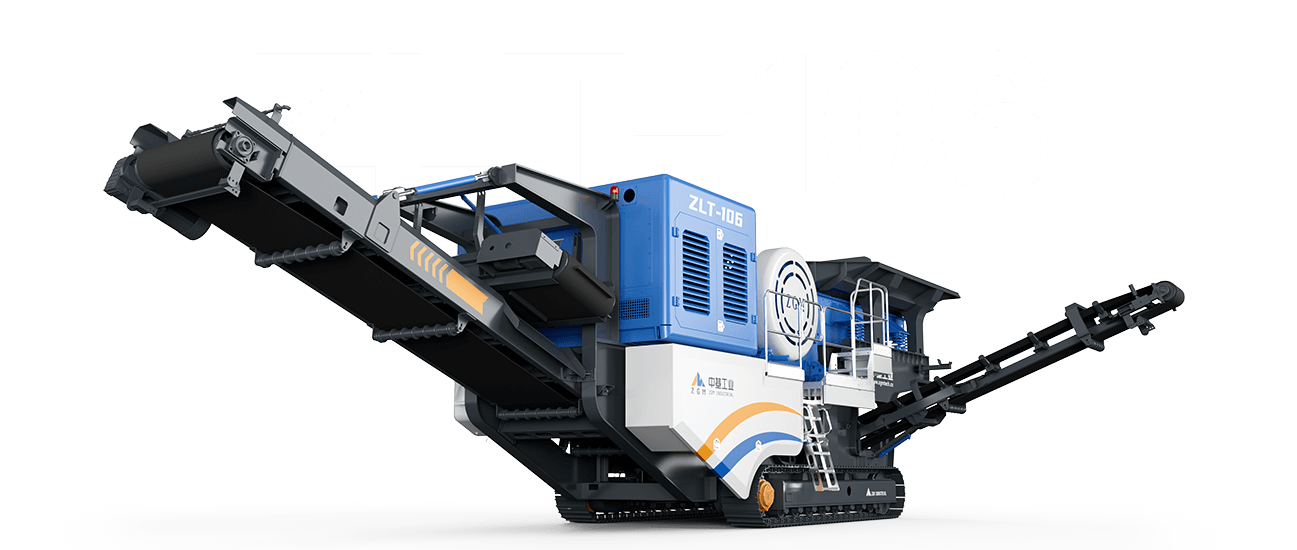

| Model | ZLT96 | ZLT106 | ZLT116 |
| Hopper Volumn(m³) | 5 | 6 | 7 |
| Loading Height(mm) | 3800 | 3950 | 4100 |
| Max. Feeding Size(mm) | 460 | 560 | 660 |
| Feeding Capacity(t/h) | 250 | 450 | 450 |
| Crusher Model | J6S96 | J6S106 | J6S116 |
| Feed Opening(mm) | 580×930 | 700×1060 | 760×1150 |
| Output Size(mm) | 60-175 | 70-200 | 70-200 |
| Main Belt Width(mm) | 800 | 1000 | 1200 |
| Main Belt Stacking Height(mm) | 3300 | 3300 | 3600 |
| Side Belt Width×Height(mm) | 650×3050 | 650×3050 | 650×3050 |
| Drive Mode | Gear motor+electric drum | Gear motor+electric drum | Gear motor+electric drum |
| Whole Machine Power(kw) | 112.9 | 141.4 | 196.2 |
| Main Equipment Power(kw) | 90 | 110 | 132 |
| Processing Capacity(t/h) | 105-390 | 150-500 | 165-520 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 38 | 52 | 65 |
| Transportation Dimensions Length × Width × Height（mm） | 14200×3100×3750 | 14600×3200×3850 | 15500×3300×3900 |

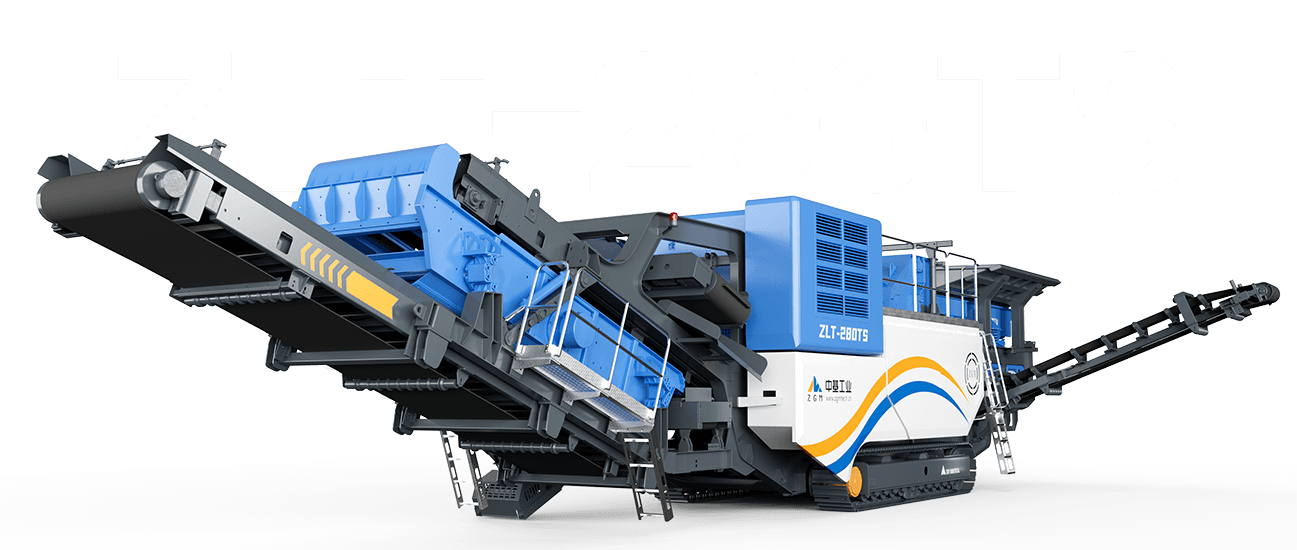

| Model | ZLT280 | ZLT280S | ZLT380 | ZLT380S |
| Hopper Volumn(m³) | 6 | 6 | 7 | 7 |
| Feeding Height(mm) | 3900 | 3900 | 4250 | 4250 |
| Max. Feeding Size(mm) | 600 | 600 | 600 | 600 |
| Feeding Capacity(t/h) | 450 | 450 | 450 | 450 |
| Model of Impact Crusher | P6S280 | P6S280 | P6S380 | P6S380 |
| Return Screen Length×Width(mm) | / | 1600×4200 | / | 1600×4200 |
| Layer of Screen | / | 1 | / | 1 |
| Output Size(mm) | 25-100 | 25-100 | 25-100 | 25-100 |
| Chassis Feeder Length×Width(mm) | 1500×2500 | 1500×2500 | 1500×2500 | 1500×2500 |
| Main Belt Width(mm) | 1100 | 1100 | 1200 | 1200 |
| Transfer Belt Width(mm) | / | 500 | / | 500 |
| Return Belt Width(mm) | / | 500 | / | 500 |
| Final Product Belt Width(mm) | / | 1200 | / | 1200 |
| Final Product Belt Stacking Height(mm) | 3400 | 3100 | 3400 | 3100 |
| Whole Machine Power(kw) | 239.4 | 264.4 | 299.4 | 324.4 |
| Main Equipment Power(kw) | 200 | 250 | 280 | 280 |
| Processing Capacity(t/h) | 200-400 | 200-400 | 250-500 | 250-500 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 52 | 60 | 60 | 68 |
| Transportation Dimensions Length × Width × Height(mm) | 16500×3800×3900 | 17500×3800×3900 | 17000×3800×3950 | 18000×3800×3950 |
| Model | ZLT200D | ZLT200DS | ZLT300D | ZLT300H | ZLT300HS |
| Hopper Volumn(m³) | 3 | 3 | 3 | 3 | 3 |
| Feeding Height(mm) | 2870 | 2870 | 2870 | 2870 | 2870 |
| Max. Feeding Size(mm) | 185 | 185 | 225 | 225 | 225 |
| Feeding Capacity(t/h) | 500 | 500 | 500 | 500 | 500 |
| Type of Cone Crusher | Single-Cylinder | Single-Cylinder | Single-Cylinder | Multi-Cylinder | Multi-Cylinder |
| Vibrating Screen Length×Width(mm) | / | 1500×4800 | / | / | 1500×4800 |
| Layer of Screen | / | 1 | / | / | 1 |
| Output Size(mm) | 8-25 | 8-25 | 8-35 | 10-45 | 10-45 |
| Main Belt Width(mm) | 1100 | 1100 | 1200 | 1100 | 1100 |
| Transfer Belt Width(mm) | / | 500 | / | / | 500 |
| Return Belt Width(mm) | / | 500 | / | / | 500 |
| Final Product Belt Width(mm) | / | 1200 | / | / | 1200 |
| Final Product Belt Stacking Height(mm) | 3400 | 3100 | 3400 | 3400 | 3100 |
| Whole Machine Power(kw) | 179.12 | 204.12 | 272.12 | 242.12 | 267.12 |
| Main Equipment Power(kw) | 160 | 160 | 250 | 220 | 220 |
| Processing Capacity(t/h) | 105-345 | 105-345 | 115-440 | 115-440 | 115-440 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 48 | 55 | 52 | 54 | 62 |
| Transportation Dimensions Length × Width × Height(mm) | 16000×3800×3800 | 17000×3800×3800 | 16000×3800×3900 | 16000×3800×3900 | 17000×3800×3900 |
| Model | ZLT1548 | ZLT1848 |
| Hopper Volumn(m³) | 6.5 | 6.5 |
| Feeding Height(mm) | 3600 | 3600 |
| Max. Feeding Size(mm) | 500 | 600 |
| Feeding Capacity(t/h) | 500 | 600 |
| Layer of Screen | 2 | 2 |
| Vibrating Screen Length×Width(mm) | 1500×4800 | 1800×4800 |
| Main Belt Width(mm) | 1000 | 1000 |
| Transfer Belt Width(mm) | / | / |
| Under-Screen Belt Width×Stacking Height(mm) | 1200 | 1200 |
| Coarse Material Belt Width×Stacking Height(mm) | 1200×3600 | 1200×3600 |
| Middle Material Belt Width×Stacking Height(mm) | 800×3500 | 800×3500 |
| Fine Material Belt Width×Stacking Height(mm) | 800×3500 | 800×3500 |
| Whole Machine Power(kw) | 63.5 | 70.5 |
| Processing Capacity(t/h) | 250-500 | 260-680 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 33 | 40 |
| Transportation Dimensions Length × Width × Height（mm） | 14500×3500×3900 | 15000×3800×3900 |

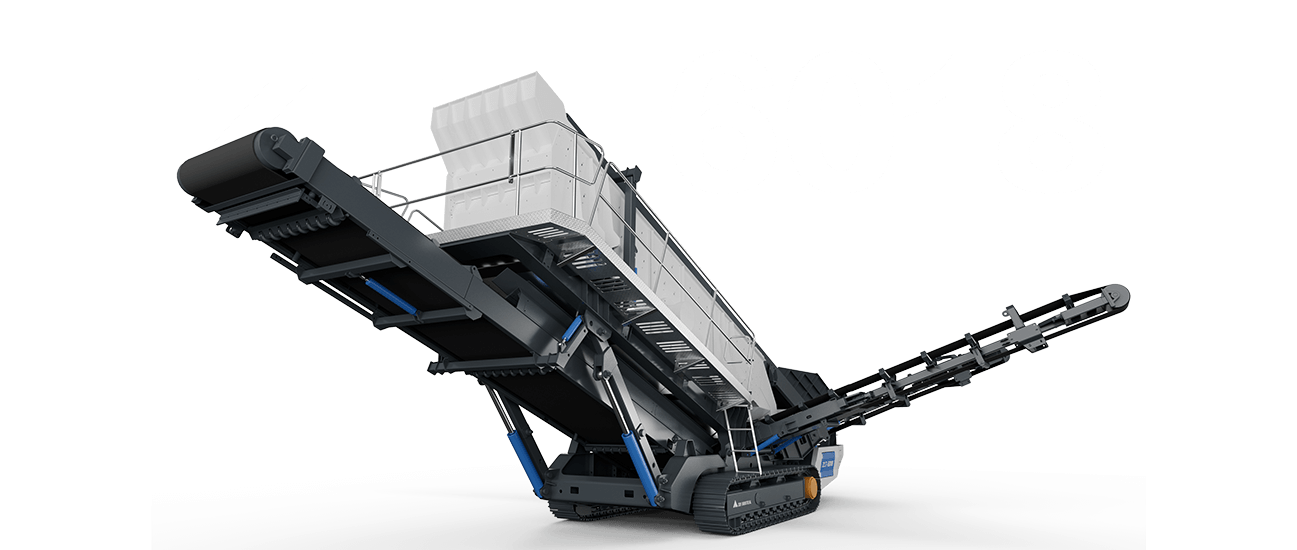

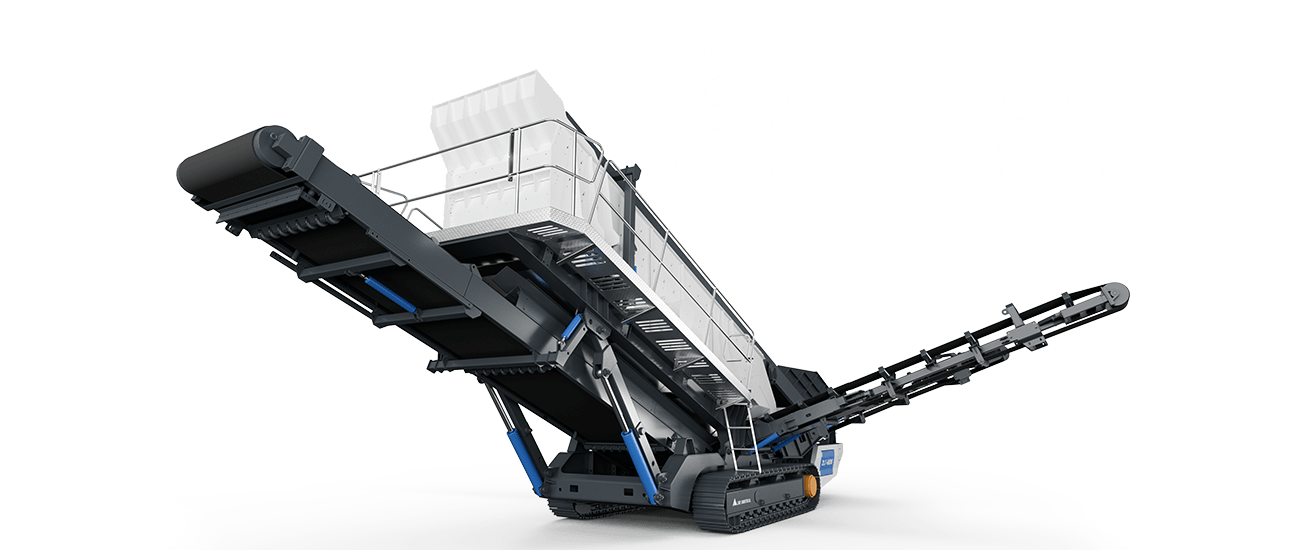

| Model | ZLT6015 | ZLT6018 | ZLT6021 |
| Hopper Volumn(m³) | 2.8 | 3.5 | 3.5 |
| Feeding Height(mm) | 2560 | 2680 | 2680 |
| Max. Feeding Size(mm) | 200 | 200 | 200 |
| Feeding Capacity(t/h) | 300 | 350 | 350 |
| Layer of Screen | 3 | 3 | 3 |
| Vibrating Screen Length×Width(mm) | 1500×6000 | 1800×6500 | 2100×6500 |
| Main Belt Width(mm) | 1000 | 1000 | 1200 |
| Transfer Belt Width(mm) | / | / | 500 |
| Under-Screen Belt Width×Stacking Height(mm) | 1000×3500 | 1200×3500 | 1200×3500 |
| Coarse Material Belt Width×Stacking Height(mm) | 500×3500 | 650×3700 | 500×3570 |
| Middle Material Belt Width×Stacking Height(mm) | 650×3500 | 650×3700 | 650×3700 |
| Fine Material Belt Width×Stacking Height(mm) | 650×3500 | 650×3700 | 650×3700 |
| Whole Machine Power(kw) | 54 | 57.5 | 65.5 |
| Processing Capacity(t/h) | 100-300 | 150-400 | 200-500 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 33 | 36 | 38 |
| Transportation Dimensions Length × Width × Height（mm） | 13000×3300×3800 | 13500×3500×3900 | 14000×3800×3900 |
Efficient commissioning crushing equipment for swift deployment and immediate on-site operation, boosting productivity.
Crawler mobile crusher features fully powered drive requiring no external power, enabling move and operate independently, achieving true integrated and efficient operations, and flexibly adapting to variable working conditions.
Rapid site transfer capability with all-terrain adaptability for multi-site operations. One machine, multiple applications – maximizing your productivity.
Intelligent operating system enables remote monitoring and automated processes, reducing labor costs while enhancing safety and efficiency.
On-site crushing at open-pit mines directly produces qualified aggregates, reducing transportation costs.
Urban demolition waste is "crushed on the spot and recycled", turning waste into treasure and achieving zero waste.

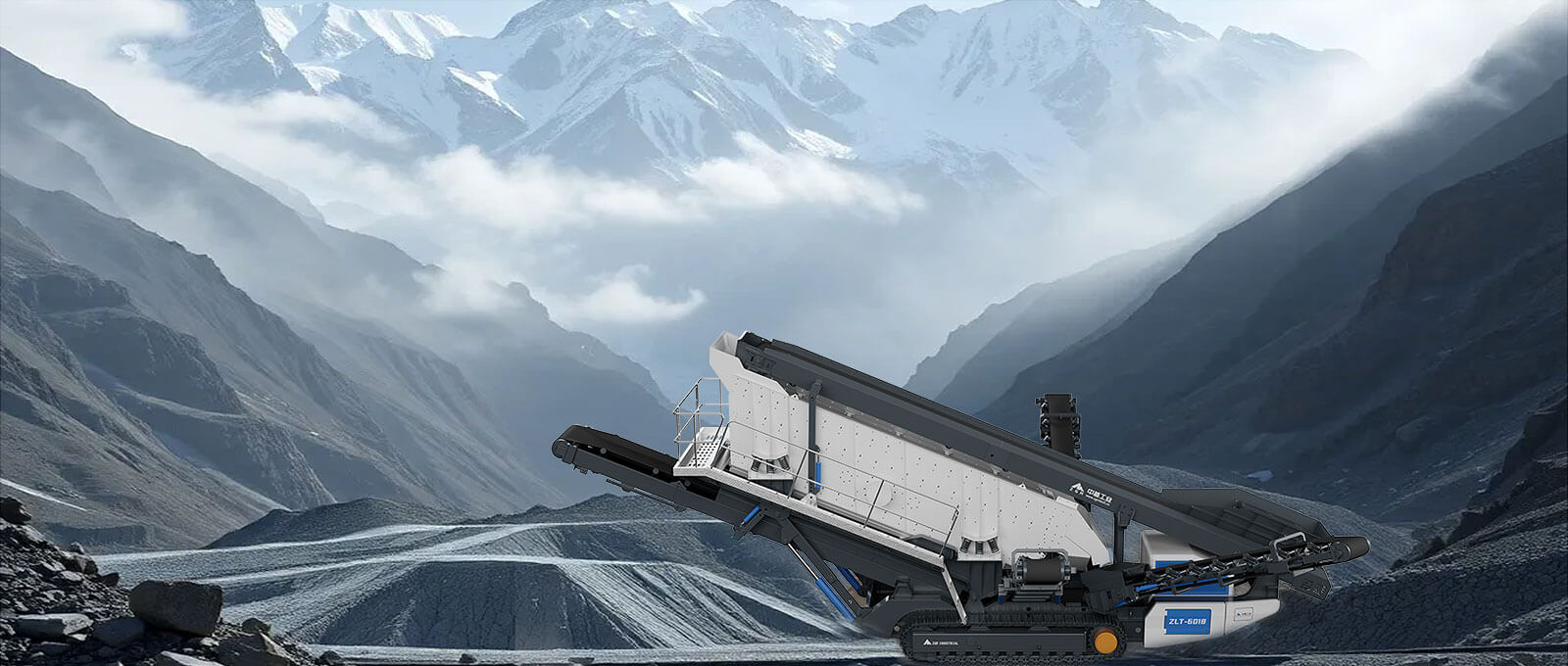

Crawler plants conquer extreme terrains (high-altitude/mountainous) with in-situ aggregate production, ensuring project timelines.
Turn mining waste into profitable resources, enhancing the economic benefits of mining areas.
