185-225mm
Max. Feeding Size105-440t/h
Capacity3m³
Hopper Volumn
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

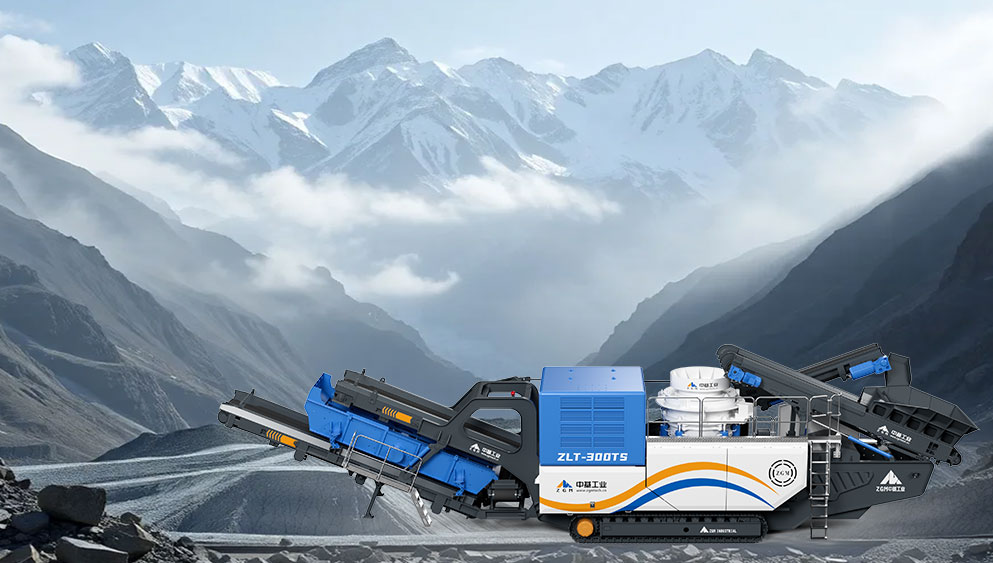

Designed for medium and fine crushing in mining, construction waste processing, and infrastructure projects. It features intelligent layered crushing technology to enhance efficiency, reduce over-crushing, and extend wear part life. A high-performance, emission-compliant engine provides robust power while ensuring energy efficiency. The front-end pre-screening system removes fines, reducing main crusher load and boosting productivity.

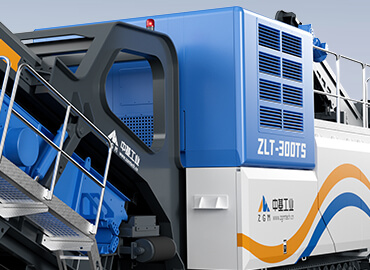

Incorporates cutting-edge dust suppression and noise reduction technologies, creating a cleaner and more comfortable working environment.

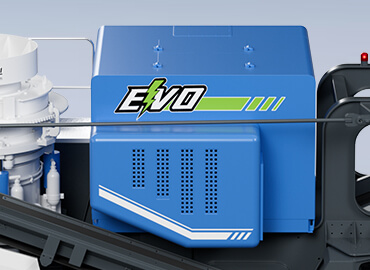

Adopt brand engine compliant with the latest emission standards, paired with an efficient hydraulic power system to enhance fuel efficiency and reduce energy consumption.

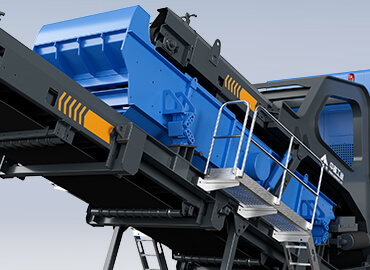

The high-efficiency pre-screening system reduces load on the crusher, increases output, and lowers energy consumption.

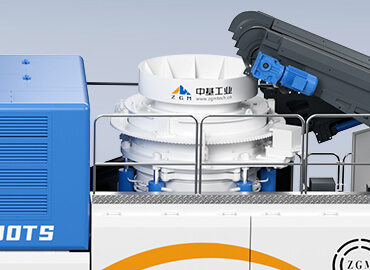

Utilizes advanced automated control technology to achieve layered material crushing, avoiding direct contact in the crushing chamber, reducing wear, and prolonging equipment lifespan.
| Model | ZLT200D | ZLT200DS | ZLT300D | ZLT300H | ZLT300HS |
| Hopper Volumn(m³) | 3 | 3 | 3 | 3 | 3 |
| Feeding Height(mm) | 2870 | 2870 | 2870 | 2870 | 2870 |
| Max. Feeding Size(mm) | 185 | 185 | 225 | 225 | 225 |
| Feeding Capacity(t/h) | 500 | 500 | 500 | 500 | 500 |
| Type of Cone Crusher | Single-Cylinder | Single-Cylinder | Single-Cylinder | Multi-Cylinder | Multi-Cylinder |
| Vibrating Screen Length×Width(mm) | / | 1500×4800 | / | / | 1500×4800 |
| Layer of Screen | / | 1 | / | / | 1 |
| Output Size(mm) | 8-25 | 8-25 | 8-35 | 10-45 | 10-45 |
| Main Belt Width(mm) | 1100 | 1100 | 1200 | 1100 | 1100 |
| Transfer Belt Width(mm) | / | 500 | / | / | 500 |
| Return Belt Width(mm) | / | 500 | / | / | 500 |
| Final Product Belt Width(mm) | / | 1200 | / | / | 1200 |
| Final Product Belt Stacking Height(mm) | 3400 | 3100 | 3400 | 3400 | 3100 |
| Whole Machine Power(kw) | 179.12 | 204.12 | 272.12 | 242.12 | 267.12 |
| Main Equipment Power(kw) | 160 | 160 | 250 | 220 | 220 |
| Processing Capacity(t/h) | 105-345 | 105-345 | 115-440 | 115-440 | 115-440 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 48 | 55 | 52 | 54 | 62 |
| Transportation Dimensions Length × Width × Height(mm) | 16000×3800×3800 | 17000×3800×3800 | 16000×3800×3900 | 16000×3800×3900 | 17000×3800×3900 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
