460-660mm
Max. Feeding Size105-520t/h
Capacity90-132kw
Main Equipment Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

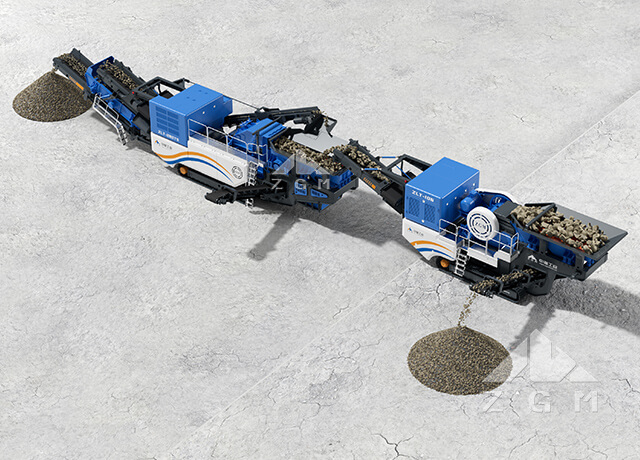

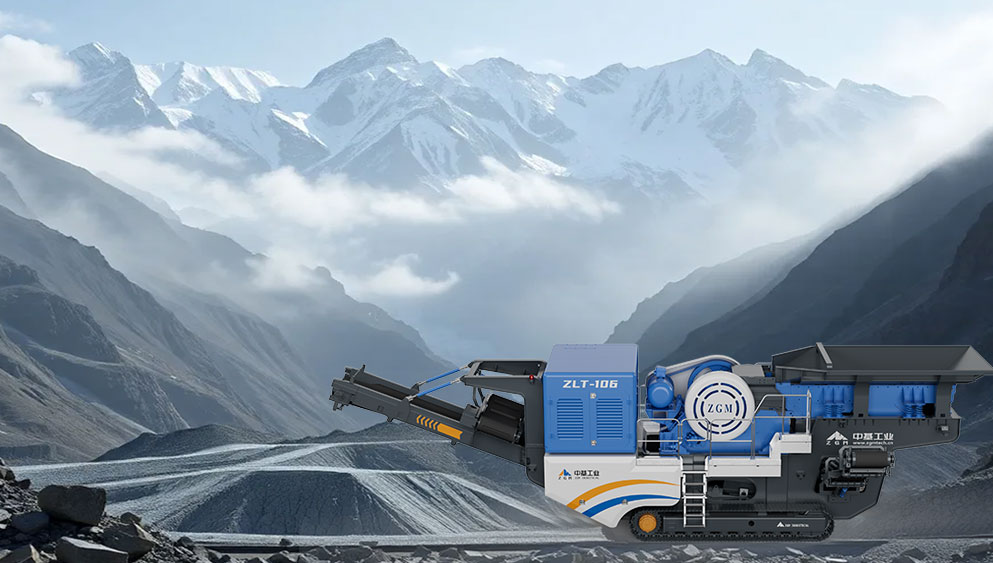

The ZLT series crawler mobile jaw crusher is a high-efficiency equipment integrated crushing, conveying, and mobility,specifically designed for complex and variable working sites. It features an energy-saving design with an emission-compliant power system, reducing fuel consumption and emissions. The high-strength crawler chassis adapts to various terrains, ensures flexible mobility and rapid relocation. The robust modular frame is easy to maintain. The main unit, a high-capacity jaw crusher, can handle various hard ores and construction waste. It is equipped with intelligent hydraulic and electronic control systems for easy and safe operation.

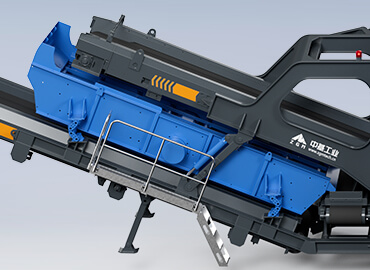

Efficient vibrating pre-screens remove fines, reducing main crusher load and extending wear part life by 30%.

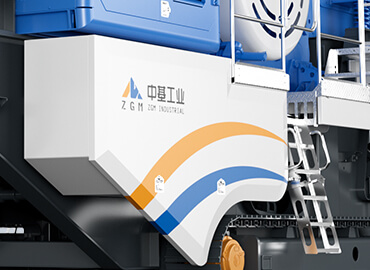

Modular design eliminates weld seam fatigue, offering excellent impact and fatigue resistance for complex conditions.

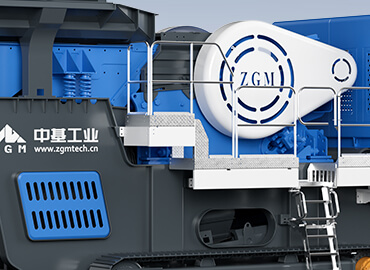

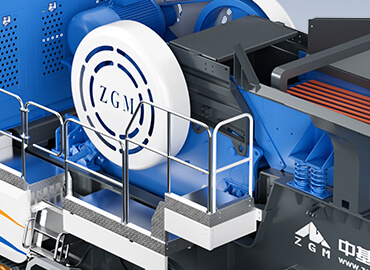

High-power drive and high-strength moving jaw generate strong crushing force for high-hardness materials, serving as the core tool in heavy-duty operations.
Advanced proportional valve technology enables precise control and smooth travel, ensuring a smoother start and more flexible steering.
| Model | ZLT96 | ZLT106 | ZLT116 |
| Hopper Volumn(m³) | 5 | 6 | 7 |
| Loading Height(mm) | 3800 | 3950 | 4100 |
| Max. Feeding Size(mm) | 460 | 560 | 660 |
| Feeding Capacity(t/h) | 250 | 450 | 450 |
| Crusher Model | J6S96 | J6S106 | J6S116 |
| Feed Opening(mm) | 580×930 | 700×1060 | 760×1150 |
| Output Size(mm) | 60-175 | 70-200 | 70-200 |
| Main Belt Width(mm) | 800 | 1000 | 1200 |
| Main Belt Stacking Height(mm) | 3300 | 3300 | 3600 |
| Side Belt Width×Height(mm) | 650×3050 | 650×3050 | 650×3050 |
| Drive Mode | Gear motor+electric drum | Gear motor+electric drum | Gear motor+electric drum |
| Whole Machine Power(kw) | 112.9 | 141.4 | 196.2 |
| Main Equipment Power(kw) | 90 | 110 | 132 |
| Processing Capacity(t/h) | 105-390 | 150-500 | 165-520 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 38 | 52 | 65 |
| Transportation Dimensions Length × Width × Height（mm） | 14200×3100×3750 | 14600×3200×3850 | 15500×3300×3900 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
