600mm
Max. Feeding Size200-500t/h
Capacity200-280kw
Whole Machine Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

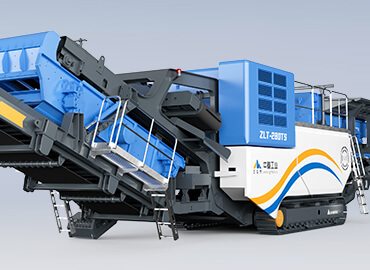

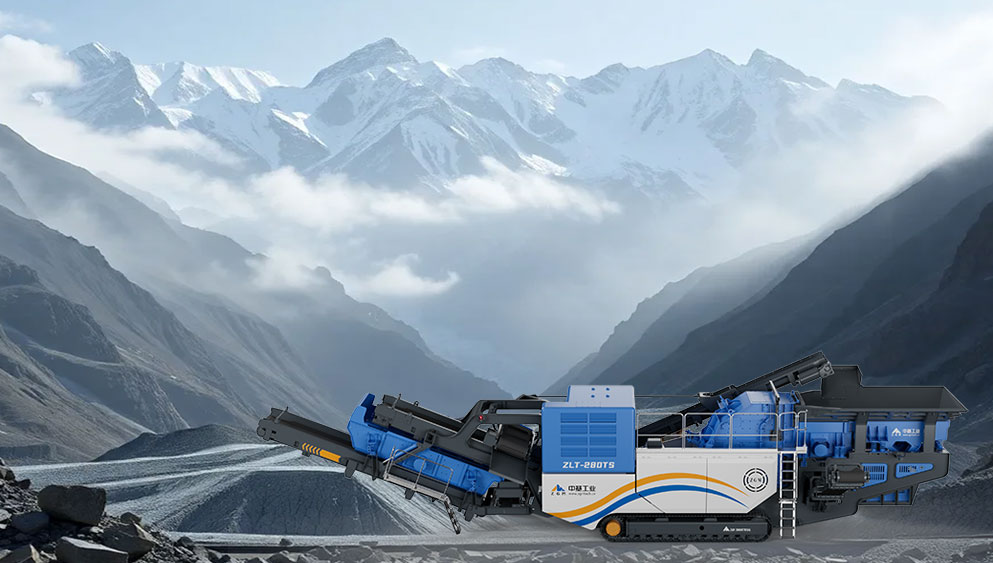

The ZLT Series Crawler Mobile Impact Crusher features a large feed opening, enabling efficient processing of bulky materials with strong crushing capacity and wide adaptability. Its integrated structural design ensures compactness, high efficiency, and enhanced stability and reliability by reducing component connections complexity. The crawler chassis provides excellent mobility on rough terrain, allowing quick site relocation. With modular components, production lines can be flexibly configured for optimized workflow and diverse operational needs.

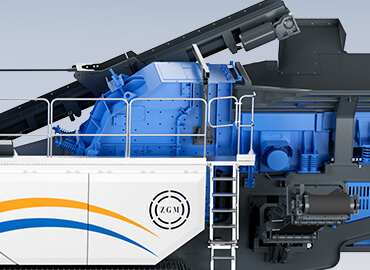

Innovative integrated crushing chamber design allows smoother material flow, preventing blockages and improving efficiency.

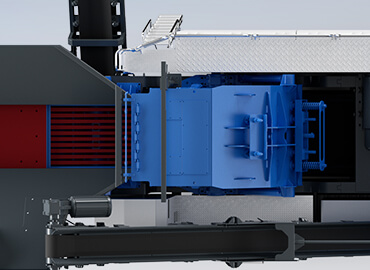

Handles various large-sized materials, ensuring smooth feeding, rapid crushing, and sufficient production capacity for diverse crushing tasks.

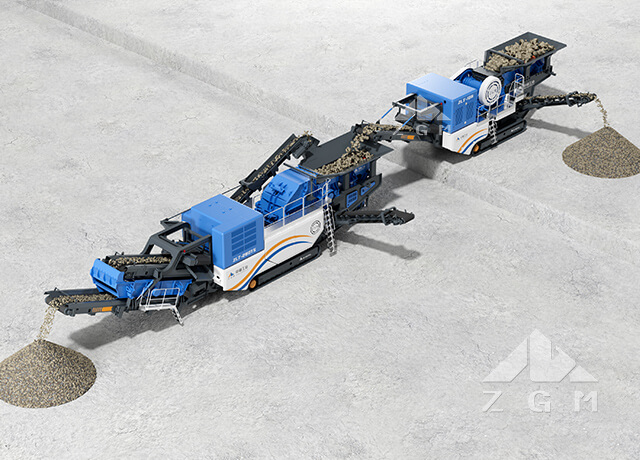

Modular design enables easy and quick installation, facilitating rapid site deployment. The overall equipment is highly mobile, significantly enhancing work efficiency.

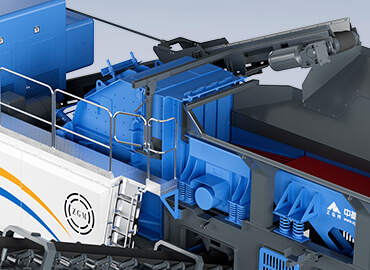

High-wear-resistant plates are used in the material force-bearing areas, ensuring a robust and wear-resistant structure. The intelligent pre-screening system increases production capacity by 30%.
| Model | ZLT280 | ZLT280S | ZLT380 | ZLT380S |
| Hopper Volumn(m³) | 6 | 6 | 7 | 7 |
| Feeding Height(mm) | 3900 | 3900 | 4250 | 4250 |
| Max. Feeding Size(mm) | 600 | 600 | 600 | 600 |
| Feeding Capacity(t/h) | 450 | 450 | 450 | 450 |
| Model of Impact Crusher | P6S280 | P6S280 | P6S380 | P6S380 |
| Return Screen Length×Width(mm) | / | 1600×4200 | / | 1600×4200 |
| Layer of Screen | / | 1 | / | 1 |
| Output Size(mm) | 25-100 | 25-100 | 25-100 | 25-100 |
| Chassis Feeder Length×Width(mm) | 1500×2500 | 1500×2500 | 1500×2500 | 1500×2500 |
| Main Belt Width(mm) | 1100 | 1100 | 1200 | 1200 |
| Transfer Belt Width(mm) | / | 500 | / | 500 |
| Return Belt Width(mm) | / | 500 | / | 500 |
| Final Product Belt Width(mm) | / | 1200 | / | 1200 |
| Final Product Belt Stacking Height(mm) | 3400 | 3100 | 3400 | 3100 |
| Whole Machine Power(kw) | 239.4 | 264.4 | 299.4 | 324.4 |
| Main Equipment Power(kw) | 200 | 250 | 280 | 280 |
| Processing Capacity(t/h) | 200-400 | 200-400 | 250-500 | 250-500 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 52 | 60 | 60 | 68 |
| Transportation Dimensions Length × Width × Height(mm) | 16500×3800×3900 | 17500×3800×3900 | 17000×3800×3950 | 18000×3800×3950 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
