18-425mesh
Final Size0.5-45t/h
Capacity37-250kw
Main Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

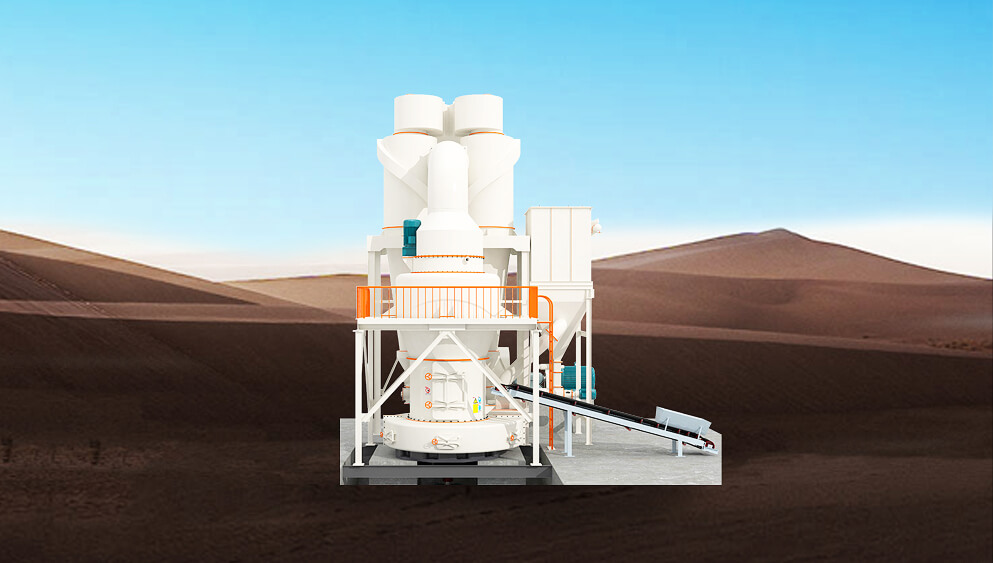

YGM-Q series European strength grinding mill (upgraded Raymond mill) is a high capacity, energy-saving, environmentally friendly, and strong type high-end equipment that have many advantages with the longterm research and development production practice of the suspension rollers Raymond Mill in the company, which combines the experience of more than 3,000 powder customers at home and abroad, and gathers the best performance parameter configuration. Widely used in mining, building materials, electric power, road and bridge, coal, metallurgy, chemical, ceramics, refractory materials, etc.

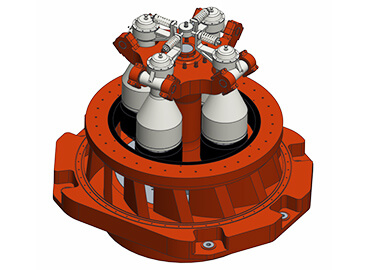

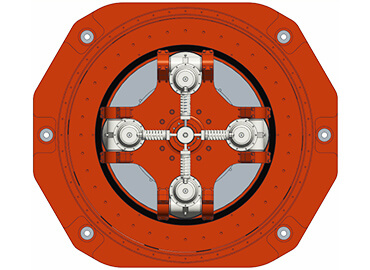

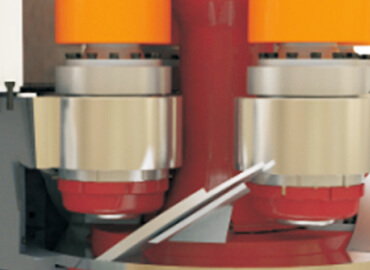

Adopts the heavy type design, which fully considers the grinding efficiency and service life, and has achieved many key breakthrough.
Adopting high pressure blower adjusting the airflow; the curved wind duct design and non-resistance wind inlet snail shell design, reducing the resistance of airflow.
According to the actual needs of users, it can be an open circuit system that allows the system to run the mill at full negative pressure to ensure longterm continuous.

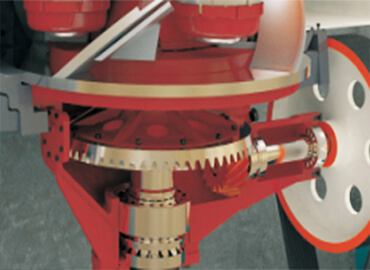

It adopts the new reducer drive, which is reliable and stable in operation and convenient to use and maintain.
Main Specification of European grinding mill
| Model | Main machine | Classifier | Air Blower | ||||
| Speed of Main Mill (r/min) | Feeding Size (mm) | Final Size (mesh) | Capacity(t/h) | Main Power (kw) | Power (kw) | Power (kw) | |
| YGMQ950 | 142 | ＜30 | 18-425 | 0.5-6.5 | 30-37 | 5.5-11 | 30-37 |
| YGMQ1300 | 106 | ＜30 | 2-18 | 75-90 | 7.5-18.5 | 75-90 | |
| YGMQ1500 | 96 | ＜35 | 5-20 | 90 | 18.5-22 | 110 | |
| YGMQ1600 | 82 | ＜35 | 5.5-25 | 132 | 18.5-30 | 132 | |
| YGMQ1850 | 78 | ＜40 | 8-38 | 185 | 30 | 200 | |
Main Specification of European strength grinding mill
| Model | Main machine | Classifier | Air Blower | ||||
| Speed of Main Mill (r/min) | Feeding Size (mm) | Final Size (mesh) | Capacity(t/h) | Main Power (kw) | Power (kw) | Power (kw) | |
| YGMQ1000 Ultra | 142 | ＜30 | 18-425 | 1-9 | 45 | 5.5-11 | 45 |
| YGMQ1150 Ultra | 120 | ＜30 | 1.5-15 | 55 | 7.5-11 | 55 | |
| YGMQ1300 Ultra | 106 | ＜30 | 2.5-18 | 90 | 11-22 | 90 | |
| YGMQ1500 Ultra | 96 | ＜35 | 5.5-23 | 110 | 18.5-22 | 110 | |
| YGMQ1700 Ultra | 82 | ＜40 | 6.8-35 | 160 | 30 | 160 | |
| YGMQ1850 Ultra | 78 | ＜45 | 10-40 | 200 | 37 | 220 | |
| YGMQ2000 Ultra | 72 | ＜50 | 12-45 | 220-250 | 45 | 250-280 | |
| YGMQ2180 Ultra | 68 | ＜50 | 14-50 | 280-315 | 55 | 315 | |
Note: ① the treatment capacity in the table is based on grinding limestone (SiO2 < 1%), and the screening rate of the product is 80%. ② This series of models can be configured according to different production
requirements, such as material, process, capacity and so on. Please contact the relevant person in charge of business for details.
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
