200~500mm
Feeding size35~350t/h
Capacity75-280kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

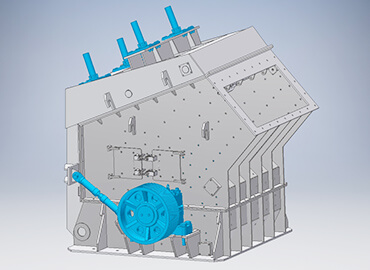

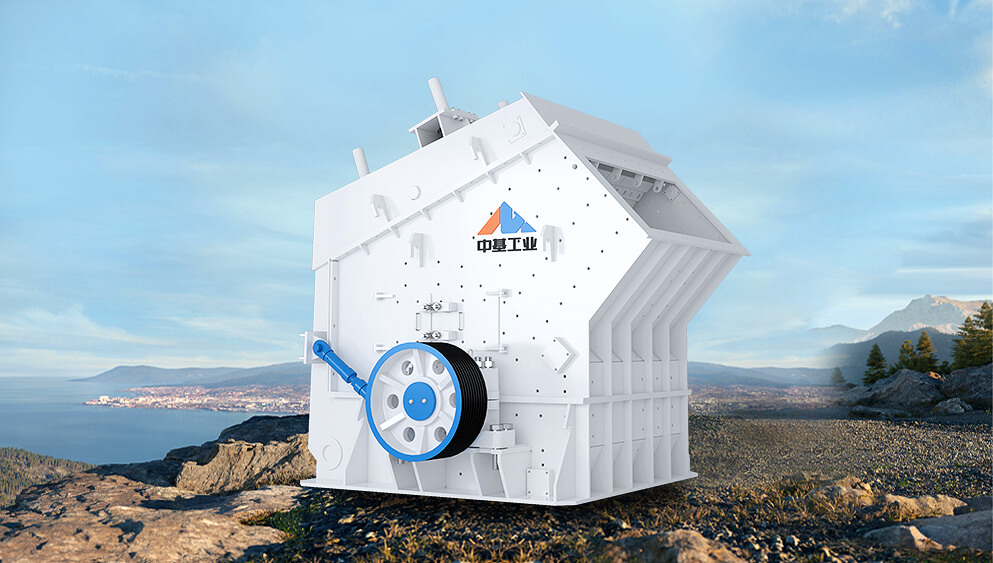

The design of impact crusher adopts novel design principle, new concepts of crushing technology. Impact crusher not only has a great crushing ratio and fine products of uniform shape, can process coarse, medium and fine type materials (granite, limestone, concrete etc.) can be selected two or three cavity version according to the finished product size.

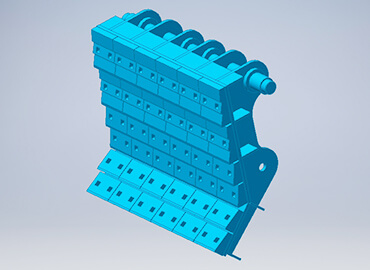

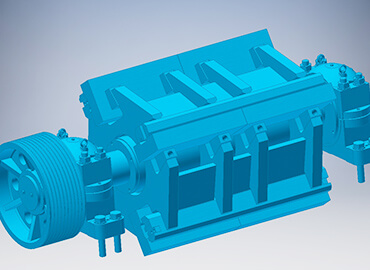

The hammer adopts high wear resistant material, service life is longer, and material after strict heat treatment, has good mechanical impact resistance.

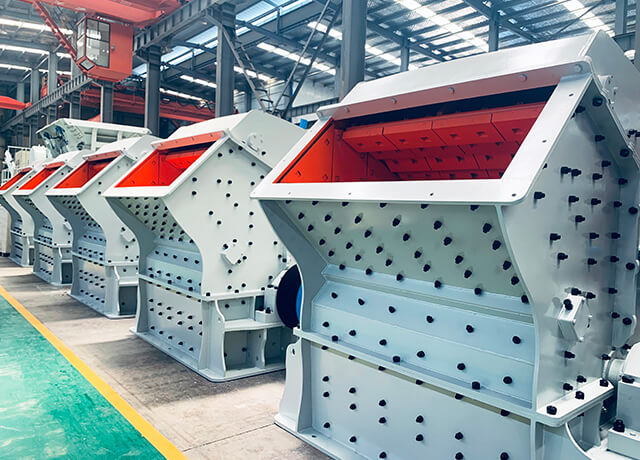

From steel plate cutting, bending, planing, milling to painting, all is digital control, core components accurate to higher standards.

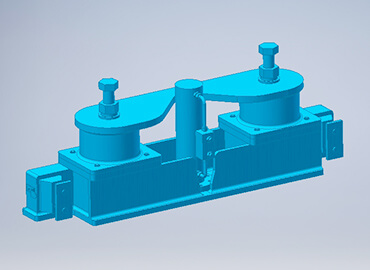

Self weight safety device. When non-crushing materials (such as iron blocks) into the broken cavity can safety protect crushing plant.
The equipment can be automatically discharged and reset to avoid the risk of equipment overload and the loss caused by downtime maintenance.
| Model | Specification | Feeding size(mm) | Max. Feeding size(mm) | Capacity(t/h) | Model of motor | Power(kW) |
| PF-1010 | φ1000×1050 | 400×1080 | 300 | 50-90 | Y315S-6 | 75 |
| PF-1210 | φ1250×1050 | 400×1080 | 300 | 70-130 | Y315L1-6 | 110 |
| PF-1214 | φ1250×1400 | 400×1430 | 300 | 90-180 | Y315L2-6 | 132 |
| PF-1315 | φ1300×1500 | 680×1520 | 350 | 120-250 | Y2-355M2-6 | 200 |
| PF-1320 | φ1300×2000 | 680×1570 | 500 | 160-350 | Y2-355M2-6 | 280 |
| PFV-1010 | φ1000×1050 | 400×1030 | 200 | 35-60 | Y315S-6 | 75 |
| PFV-1210 | φ1250×1050 | 570×1030 | 250 | 70-140 | Y315L1-6 | 110 |
| PFV-1214 | φ1250×1400 | 570×1430 | 250 | 90-190 | Y315L2-6 | 160 |
| PFV-1315 | φ1300×1500 | 625×1530 | 300 | 150-280 | Y2-355M2-6 | 200 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
