300mm
Feeding Size85-1300t/h
Capacity2-4
Layer of Screen
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

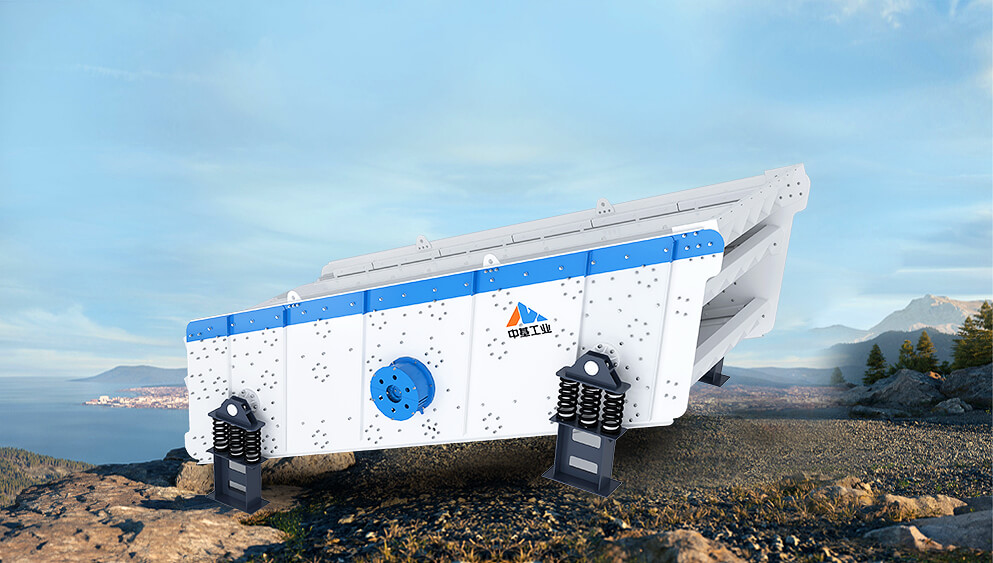

Y6S series vibrating screen suitable for all kinds of screening works in heavy, medium and fine screening. The vibrating screen has high vibration intensity and higher processing capacity and screening efficiency than traditional equipment under the same specifications. It is an ideal equipment for dealing with primary crushing and secondary crushing materials, and can also be used to screen finished materials.

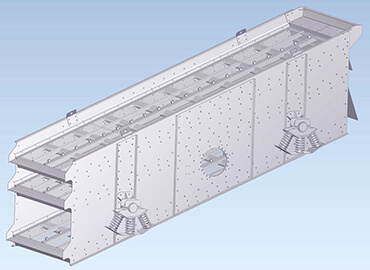

Integrated structure, strong vibration force, low vibration noise, easy to repair, durable.

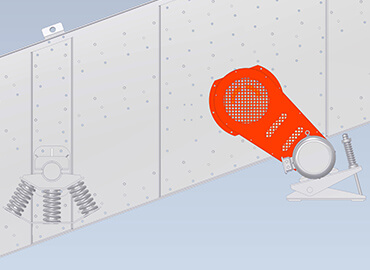

The module design of vibration exciter aligning devices and cabinet can convenient replacement.
Optional with thin lubrication, which assures the bearing’s lubrication is at its best.

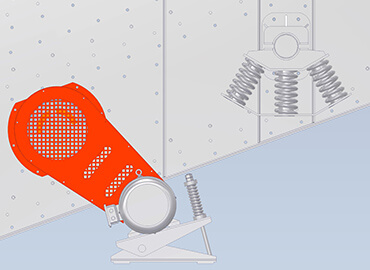

Drivers are added to improve motor transmission efficiency and prolong service life of V-belt, thus prolongs the service life of bearing.
| Model | ScreenLayer | Sieve Pore(mm) | Feeding Size(mm) | Capacity(t) | Motor Power(kw) | Amplitude | Sieve Specification |
| Y6S2165-2 | 2 | 3-100 | 300 | 85-750 | 30 | 6-11 | 2100x6000 |
| Y6S2165-3 | 3 | 3-100 | 300 | 85-750 | 30 | 6-11 | |
| Y6S2165-4 | 4 | 3-100 | 300 | 85-750 | 37 | 6-11 | |
| Y6S2465-2 | 2 | 3-120 | 300 | 90-850 | 37 | 6-11 | 2400x6000 |
| Y6S2465-3 | 3 | 3-120 | 300 | 90-850 | 37 | 6-11 | |
| Y6S2870-2 | 2 | 3-120 | 300 | 110-1000 | 37 | 6-11 | 2800x7000 |
| Y6S2870-3 | 3 | 3-120 | 300 | 110-1000 | 37 | 6-11 | |
| Y6S3073-2 | 2 | 3-120 | 300 | 150-1300 | 45 | 6-11 | 3000x7300 |
| Y6S3073-3 | 3 | 3-120 | 300 | 150-1300 | 45 | 6-11 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
