≤1200mm
Feeding size100-700t/h
Capacity90-500kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

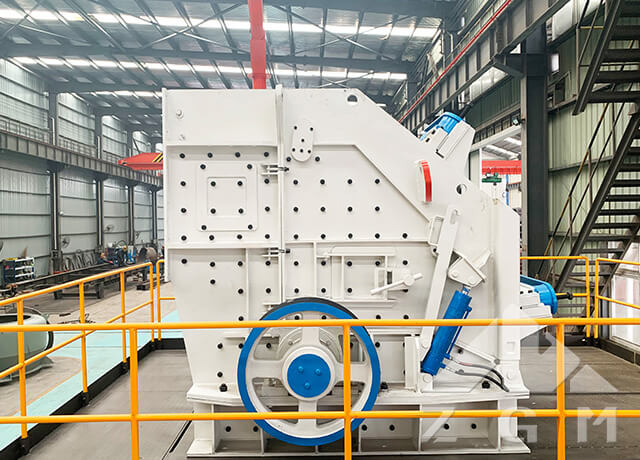

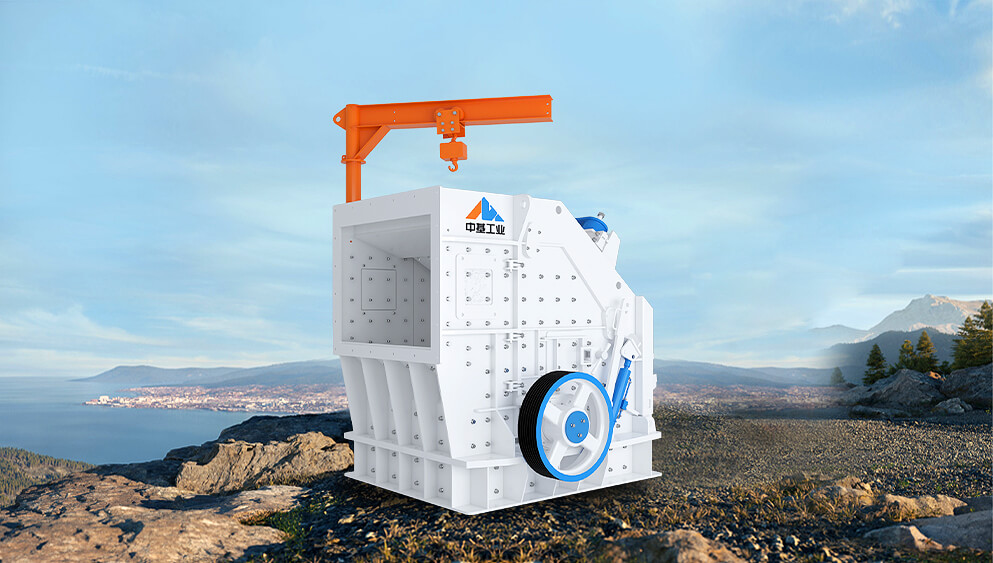

P6S series of high-strength hydraulic impact crusher is the embodiment of international advanced technology, which has strong advantages in the fields of crushing ratio, safety, operation, unit energy consumption and so on. By adjusting the special device, it can be freely converted between the first and second crushing and widely used in the stone crushing plant.

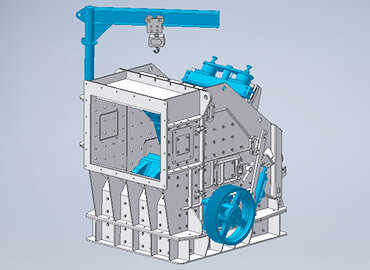

By adopting the three combination design of open box, hydraulic hoisting device and maintenance hoisting, make hammer and parts replacement in short time.

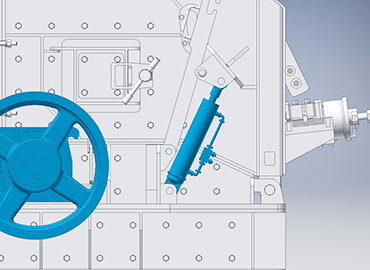

Hydraulic automatically adjust the gap between the Impact rack and the plate hammer, effectively reducing labor intensity, fast, convenient and safer operation.

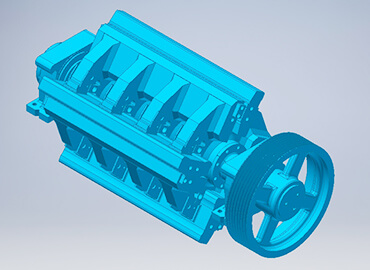

Bearing pedestal adopts overall forging steel, which can perfectly fit the crusher frame and increase the radial force of bearing pedestal.

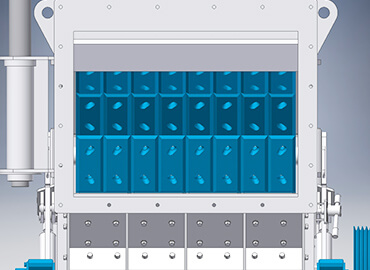

Hammer adopts crescent, which can ensure the material to crush vertically with great impact strength, high crushing efficiency.
| Model | Output size(mm) | Max. Feeding size(mm) | Capacity(t/h) | Power(kw) | Overall Dimension(mm)(L×W×H) |
| P6S150 | 20-100 | 600 | 100-200 | 90-110 | 2800×1925×2305 |
| P6S200 | 20-100 | 900 | 140-285 | 110-160 | 2871×1967×2600 |
| P6S280 | 20-100 | 900 | 200-400 | 160-200 | 2871×2307×2600 |
| P6S380 | 20-200 | 950 | 250-500 | 200-315 | 3175×2781×2800 |
| P6S480 | 20-200 | 1000 | 400-600 | 315-375 | 3582×3205×3118 |
| P6S680 | 20-200 | 1200 | 550-700 | 400-500 | 4056×3395×3356 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
