10-295mm
Feeding size90-1200t/h
Capacity≤630kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

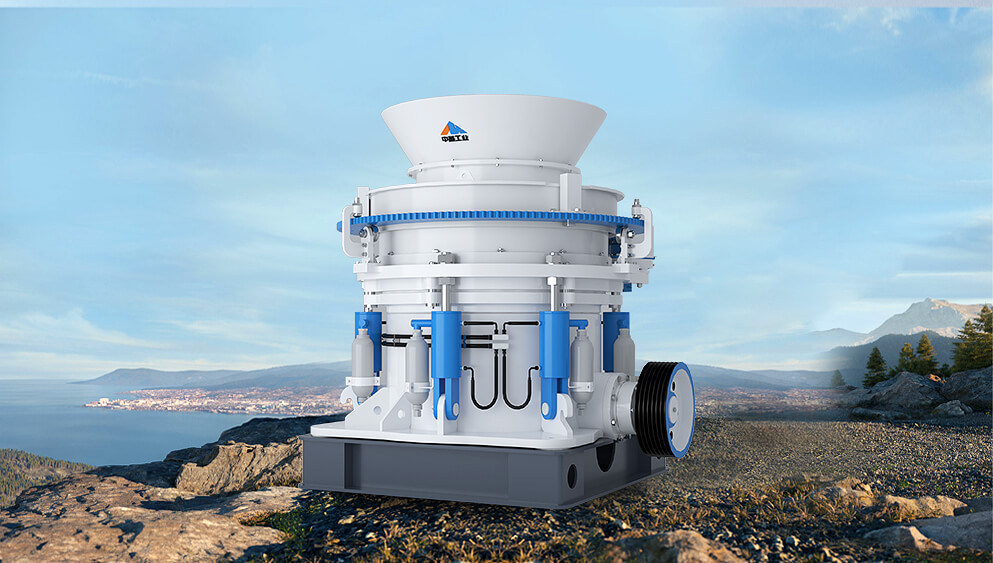

HPS series multi-cylinder hydraulic cone crusher is suitable for all kinds of mines, aggregates, tunnels and other fields of medium, fine and ultra-fine crushing. It has become one of the most popular equipment for users and engineers in the crushing production line. Our company through of technology, processing technology, material application, process configuration and so on, has put the advantages into our production.

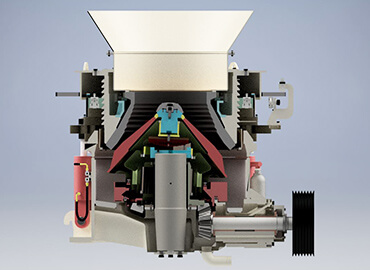

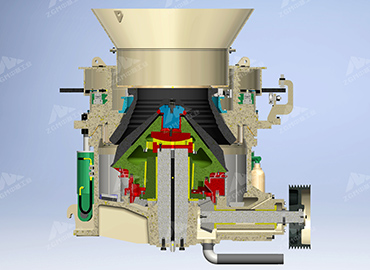

Transmission parts and the structure of lubrication seal are optimized further based on the structure of fixed main shaft and eccentric shaft rotates.

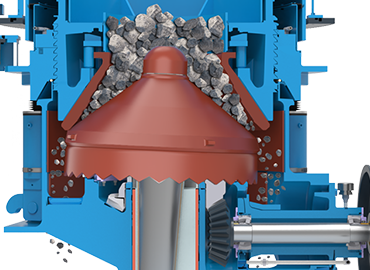

The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60%.

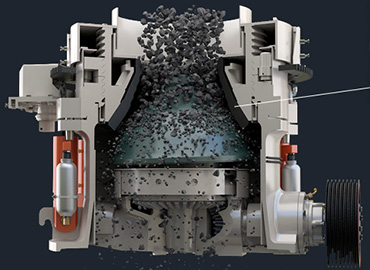

The materials are crushed under the adoption of unique laminated crushing principle, and the efficiency is higher.
Full hydraulic operation is applied on cleaning cavity, overload protection, adjustment and locking.
| Model | Type of chamber | Standard | Short head | Power (kw) | Capacity(t/h) | ||
| Feeding size(mm) | Min.output size(mm) | Feeding size(mm) | Min.output size(mm) | ||||
| HPS200 | coarse | 185 | 19 | 76 | 10 | 132-200 | 90-250 |
| middle | 125 | 17 | 54 | 6 | |||
| fine | 95 | 13 | 23 | 6 | |||
| superfine | - | - | 10 | 5 | |||
| HPS300 | oversize | 230 | 25 | - | - | 180-250 | 115-440 |
| coarse | 210 | 20 | 75 | 10 | |||
| middle | 150 | 15 | 50 | 8 | |||
| fine | 105 | 10 | 20 | 6 | |||
| superfine | - | - | 20 | 6 | |||
| HPS400 | oversize | 295 | 30 | - | - | 280-355 | 140-630 |
| coarse | 250 | 25 | 90 | 10 | |||
| middle | 195 | 20 | 50 | 8 | |||
| fine | 110 | 14 | 40 | 6 | |||
| superfine | - | - | 30 | 6 | |||
| HPS500 | oversize | 330 | 30 | - | - | 355-450 | 175-790 |
| coarse | 285 | 25 | 90 | 13 | |||
| middle | 200 | 20 | 55 | 10 | |||
| fine | 133 | 16 | 40 | 8 | |||
| superfine | - | - | 35 | 6 | |||
| HPS800 | oversize | 353 | 32 | - | - | 550-630 | 260-1200 |
| coarse | 297 | 32 | 155 | 13 | |||
| middle | 267 | 25 | 92 | 10 | |||
| fine | 219 | 16 | 33 | 6 | |||
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
