400-1020mm
Feeding size80~900t/h
Capacity7.5-45kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

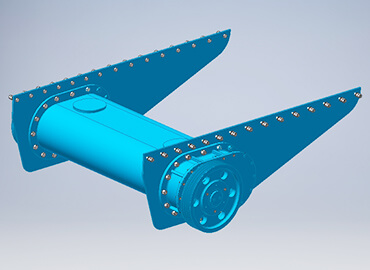

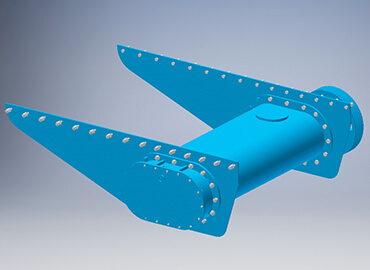

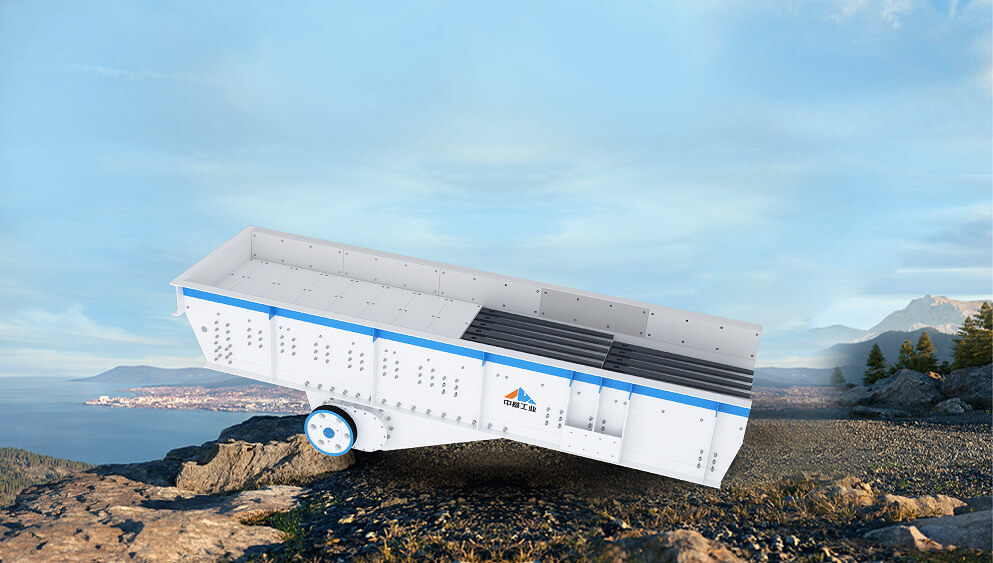

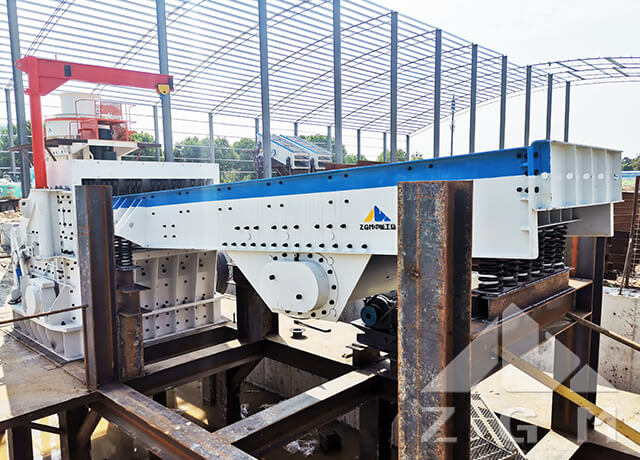

ZSW series vibrating feeder adopts double eccentric shafts vibration exciter, which ensures that the equipment can withstand the large impact of falling material. The bulk, granular materials can be fed uniformly, regularly and continuously from storage silos to receiving device to avoid the phenomenon of crashes of the receiving device in the production process and to extend service life.
Adjust the exciting force, according to production line operating requirements to change and control flow.
Simple structure, strong loading, low cost and convenient for installation and maintenance.
The closed structure can be added according to specific situations to avoid powder pollution.

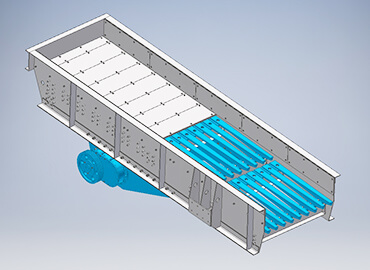

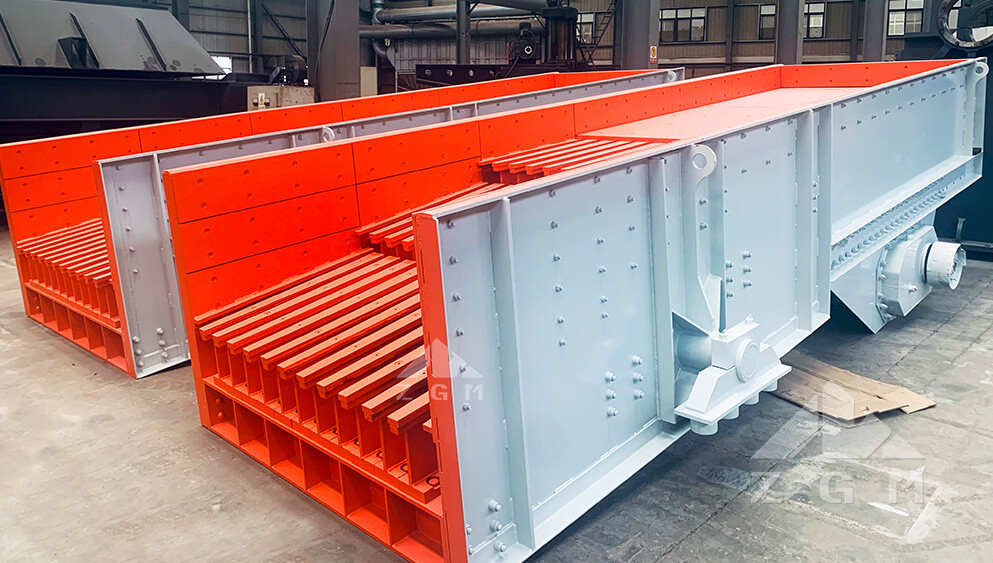

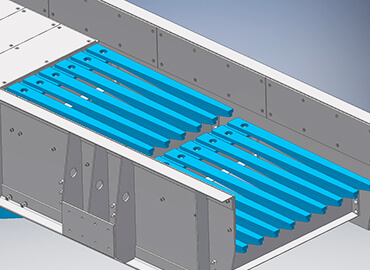

It can adjust grate clearance according to raw material, pre-screening function (separating soil or small materials in advance).
| Model | Feeding size(mm) | Feeding size(mm) | Capacity(t/h) | Power(kw) | Weight(t) | Overall Dimension(mm) |
| ZSW3090 | 3000×900 | 400 | 80-120 | 7.5 | 3.9 | 3110×1800×1600 |
| ZSW3896 | 3800×960 | 500 | 120-210 | 11 | 4.2 | 3850×1950×1630 |
| ZSW4211 | 4200×1100 | 650 | 180-400 | 15 | 4.8 | 4400×2050×1660 |
| ZSW4911 | 4900×1100 | 650 | 280-500 | 15-18.5 | 5.6 | 5200×2050×1700 |
| ZSW4913 | 4900×1300 | 800 | 300-550 | 22 | 6.7 | 5200×2350×1750 |
| ZSW6016 | 6000×1600 | 1020 | 500-900 | 30-45 | 10.3 | 6160×2918×2292 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
