≤190mm
Input material size20-310t/h
Capactiy37-315kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

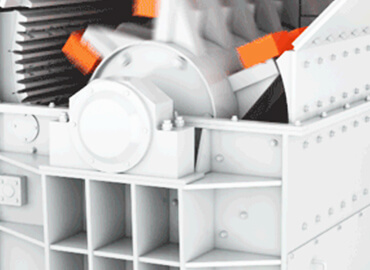

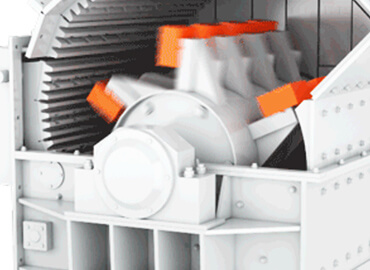

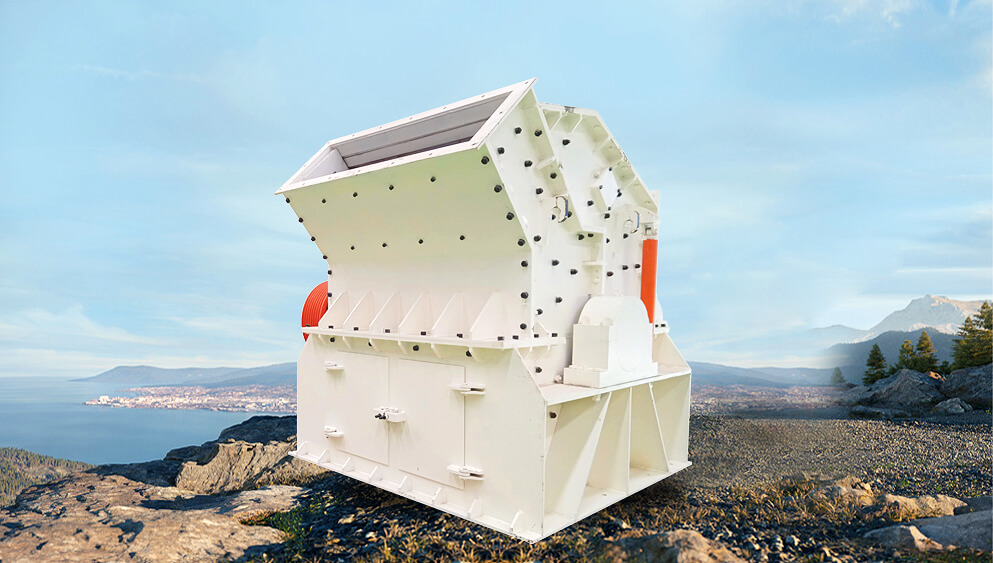

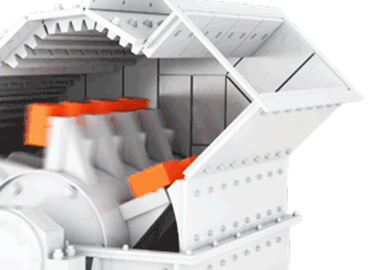

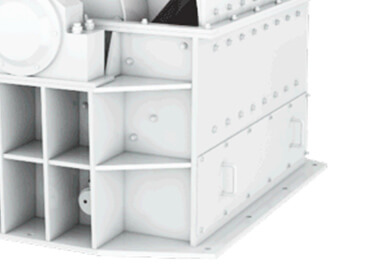

ZXJ high-efficiency fine crusher is a new type of multi-functional fine crusher that integrates fine crushing and sand making. This fine crusher can replace part of the functions of the sand making machine, and is suitable for materials with a compressive strength of not more than 150MPa and a surface moisture of not more than 10%.
High crushing efficiency and low power consumption. Three discharge channels, high output and low energy consumption.
The discharging particle size is controllable and the particle size is regular, required material particle size can reach more than 95%.
The adjusting plate can be turned over at both ends, the service life is increased, and the adjustment is easier.
The hammer head can be used on all sides, with high utilization and high hardness.
| Model | Input material size (mm) | Inlet size(mm) | Output size (mm) | Adjustable width of discharge seam(mm) | Capactiy(t/h) | Power(kw) |
| ZXJ800×400 | ≤120 | 400×185 | ≤5 | 5-20 | 20-45 | 37-45 |
| ZXJ800×600 | ≤180 | 500×250 | ≤5 | 5-20 | 35-55 | 45-55 |
| ZXJ800×800 | ≤180 | 550×330 | ≤5 | 5-20 | 35-65 | 45-55 |
| ZXJ1010×1010 | ≤180 | 1000×350 | ≤5 | 5-20 | 45-75 | 55-75 |
| ZXJ1200×1000 | ≤180 | 1200×400 | ≤5 | 5-20 | 70-110 | 90-110 |
| ZXJ1200×1200 | ≤180 | 1200×450 | ≤5 | 5-20 | 90-120 | 110-132 |
| ZXJ1400×1400 | ≤190 | 1500×500 | ≤5 | 5-20 | 100-150 | 160 |
| ZXJ1600×1600 | ≤190 | 1600×550 | ≤5 | 5-20 | 170-250 | 250 |
| ZXJ1800×1800 | ≤190 | 1800×800 | ≤5 | 5-20 | 250-310 | 315 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
