300mm
Max. Feeding10-810m³/h
Capacity11-37kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

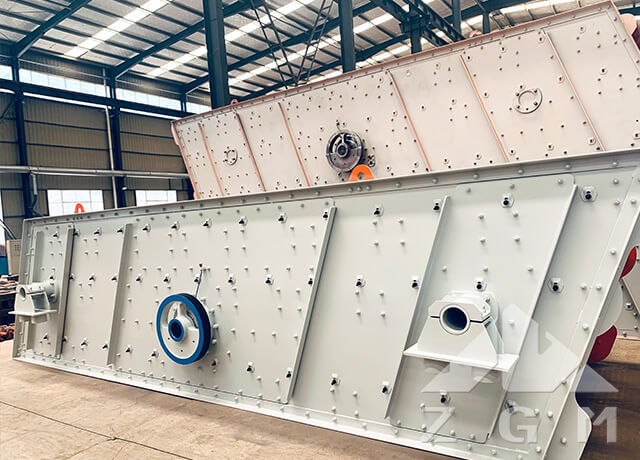

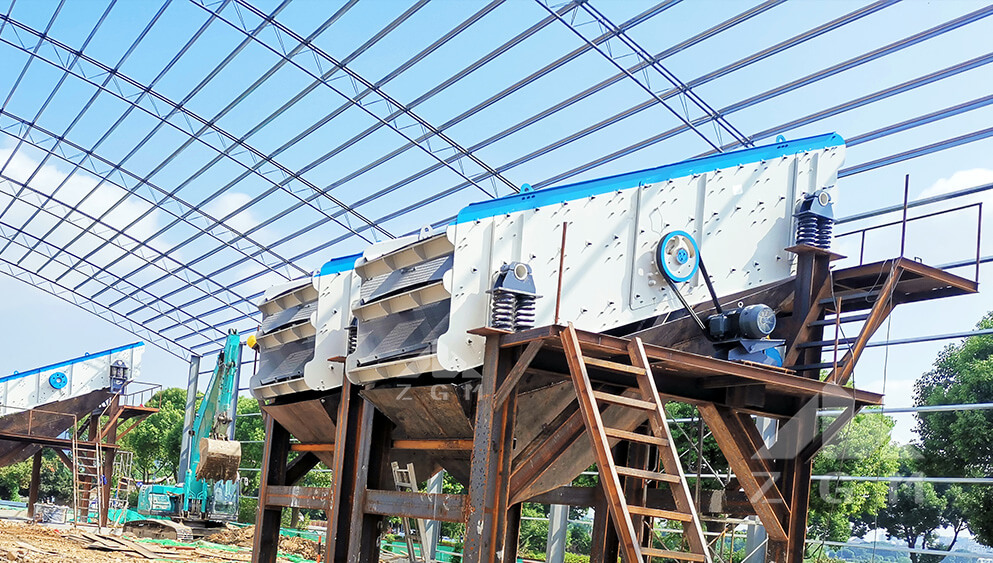

The vibration track of YS circular vibrating screen is elliptical, not only suitable for quarry screening materials, but also for coal preparation, mineral processing, building materials, electricity and chemical departments for product separating. Which has the characteristics of advanced structure, strong exciting force, low vibration noise, easy maintenance, strong and durable.

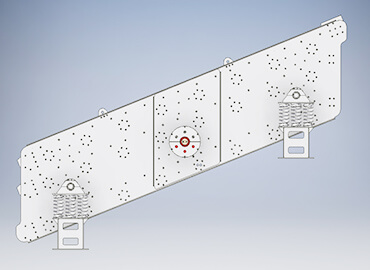

Integrated structure, strong vibration force, low vibration noise, easy to repair, durable.

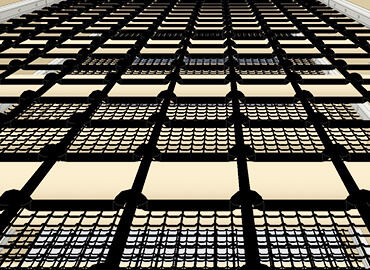

It adopts punching sieve and has long life span, solve the traditional problem of plugging.

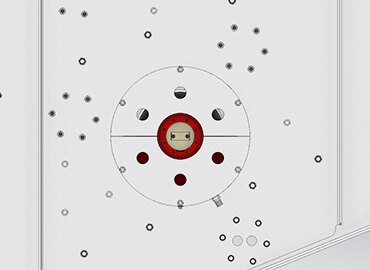

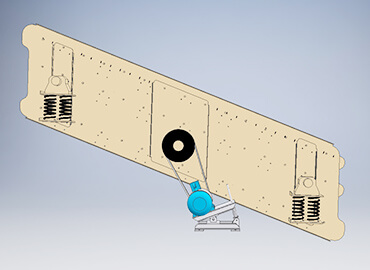

Adopts cylinder eccentric shaft exciter and offset block to adjust amplitude, easy maintain.
Optional with thin lubrication, which assures the bearing's lubrication is at its best.
| Model | Layer | Size of sieve pore(mm) | Max. Feeding size (mm) | Capacity(m³/h) | Double amplitude(mm) | Model of motor | Power(kw) | Screen size(mm) |
| 2YS1237 | 2 | 3-50 | 300 | 10-80 | 6-8 | Y160M-4 | 11 | 1200×3700 |
| 3YS1237 | 3 | 3-50 | 300 | 10-80 | 8 | Y160M-4 | 11 | 1200×3700 |
| 4YS1237 | 4 | 3-50 | 300 | 10-80 | 8 | Y160M-4 | 11 | 1200×3700 |
| 2YS1548 | 2 | 3-100 | 300 | 22-160 | 8 | Y160L-4 | 15 | 1500×4800 |
| 3YS1548 | 3 | 3-100 | 300 | 22-160 | 8 | Y160L-4 | 15 | 1500×4800 |
| 4YS1548 | 4 | 3-100 | 300 | 22-160 | 8 | Y160L-4 | 15 | 1500×4800 |
| 2YS1848 | 2 | 3-100 | 300 | 32-276 | 8 | Y180M-4 | 18.5 | 1800×4800 |
| 3YS1848 | 3 | 3-100 | 300 | 32-276 | 8 | Y180M-4 | 18.5 | 1800×4800 |
| 4YS1848 | 4 | 3-100 | 300 | 32-276 | 8 | Y180M-4 | 18.5 | 1800×4800 |
| 2YS1860 | 2 | 3-100 | 300 | 65-586 | 8 | Y180M-4 | 22 | 1800×6000 |
| 3YS1860 | 3 | 3-100 | 300 | 65-586 | 8 | Y180M-4 | 22 | 1800×6000 |
| 4YS1860 | 4 | 3-100 | 300 | 65-586 | 8 | Y180M-4 | 22 | 1800×6000 |
| 2YS2160 | 2 | 3-100 | 300 | 81-720 | 8 | Y200L-4 | 30 | 2100×6000 |
| 3YS2160 | 3 | 3-100 | 300 | 81-720 | 8 | Y200L-4 | 30 | 2100×6000 |
| 4YS2160 | 4 | 3-100 | 300 | 81-720 | 8 | Y200L-4 | 37 | 2100×6000 |
| 2YS2460 | 2 | 3-150 | 300 | 90-810 | 8 | Y225S-4 | 37 | 2400×6000 |
| 3YS2460 | 3 | 3-150 | 300 | 90-810 | 8 | Y225S-4 | 37 | 2400×6000 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
