Double or triple axis
FrameConfigurable
Iron Remover80-350t/h
Capacity
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

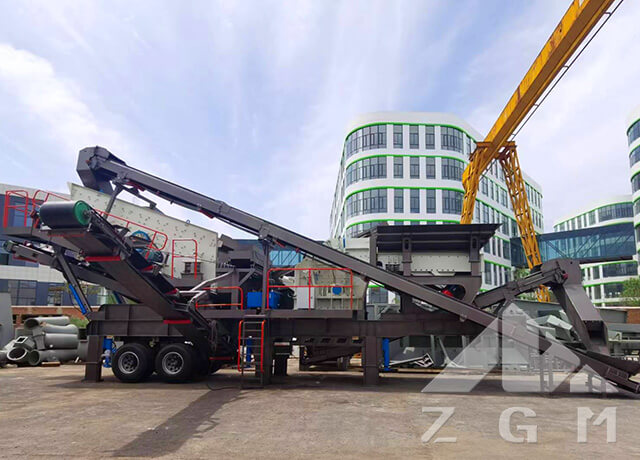

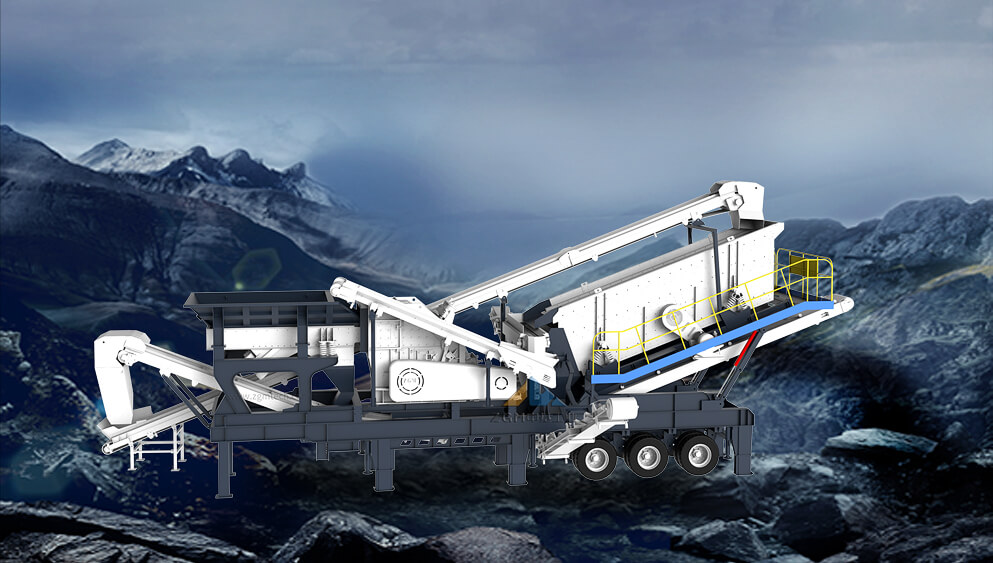

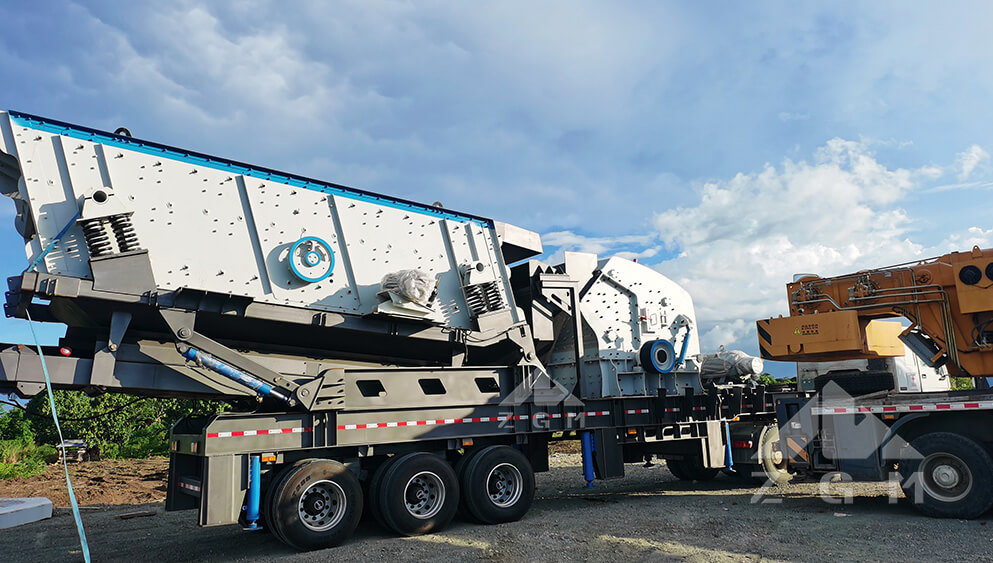

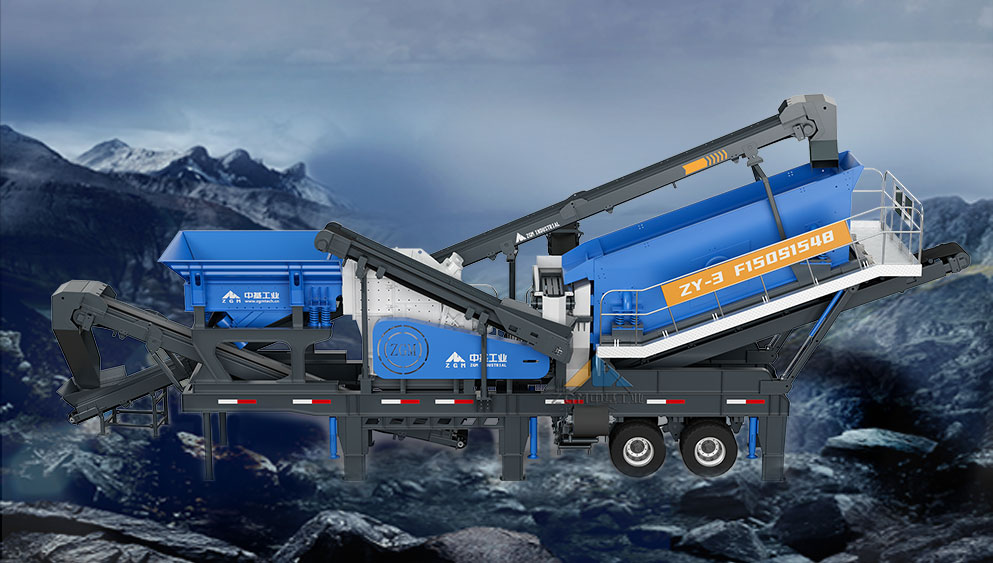

The integrated equipment of ZY-3 solid waste treatment integrated mobile station includes crushing, feeding, screening, conveying and other links, directly reaching the particle size of the finished product. It is not limited by the surrounding environment, and tire walking does not damage the road surface. A complete set of integrated units, a reasonable and compact space layout, to maximize the optimization of the site space.

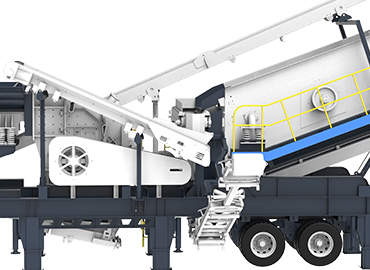

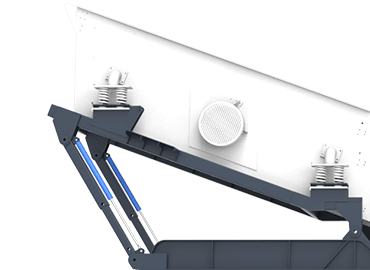

The hydraulic and mechanical support of the screener can ensure the stability of equipment during operation, hydraulic lifting, and flexible switching work modes.
The electric control cabinet can be integrated in the car body or independently in the control room, and the high-end optional PLC LCD screen console.

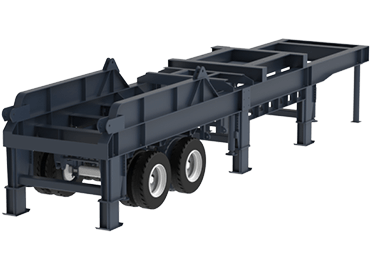

The chassis of the frame has a compact design, which effectively shortens the transport length and is designed with a flexible parking function.

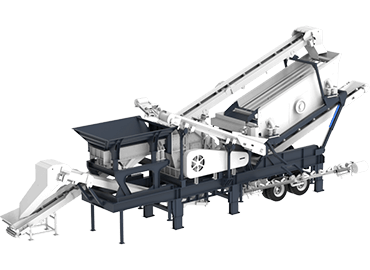

It can be directly put into production without an external belt conveyor, and the overload and iron removal protection system can protect the machine.
| Model | Crusher Model | Feeder Model | Screen Model | Iron Remover | Frame | Capacity(t/h) | Transport Size(L*W*H)（mm） |
| ZY-3P6S150S1548 | P6S150 | GZD3090 | 3YS1548 | RCYD(C)-6.5 | Dual axis | 80-180 | 15900*2600*3800 |
| ZY-3 P6S200S1848 | P6S200 | GZD3896 | 3YS1848 | RCYD(C)-8 | Triaxial | 120-260 | 17200*2900*4000 |
| ZY-3P6S280S1560 | P6S280 | GZD3896 | 3YS1860 | RCYD(C)-8 | Triaxial | 150-350 | 17500*2900*4000 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
