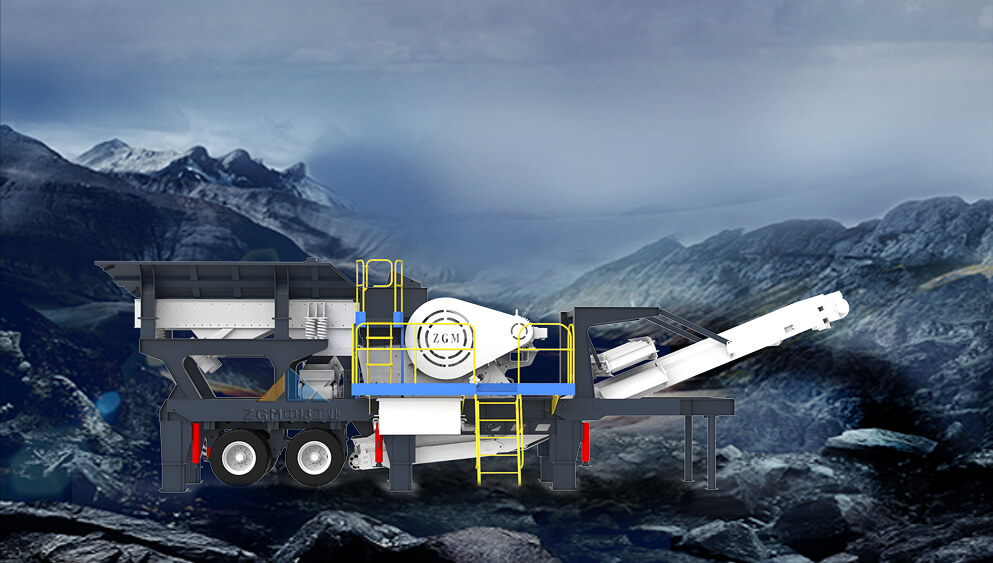

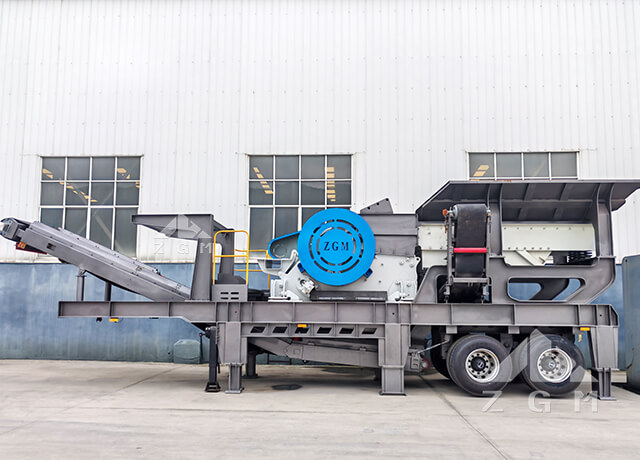

ZY-1 series coarse crushing mobile station adopt advanced heavy-ship design, the whole structure is stronger, the operation is more stable. The main equipment can choose J6S series European jaw crusher, PE series jaw crusher, P6S series European hydraulic impact crusher, etc. The crushing ratio is large, which is the first choice of primary crushing.

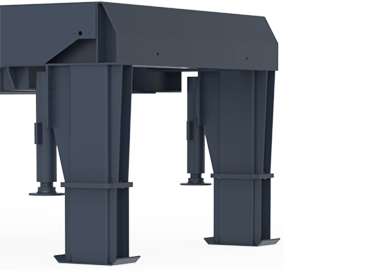

The high quality and thickened steel frame can protect the crushing station running smoothly, and prolong the service life.

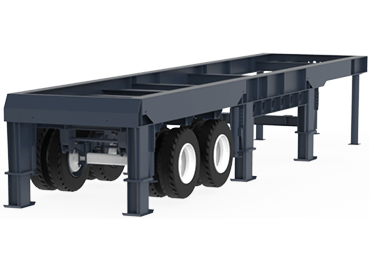

Adopt compact ship design for frame chassis, transportation length is shortened effectively, the flexible parking function is designed makes equipment quick arrival site.

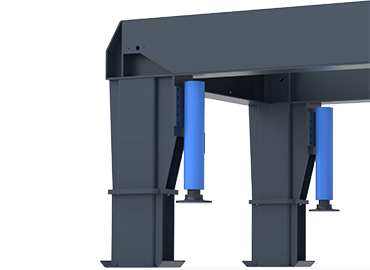

Each leg can rise independently, which can effectively to avoid the offset of support ground uneven and uneven intensity.

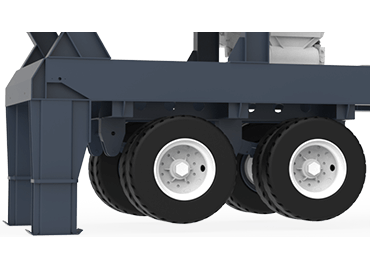

Steering traction shaft, small turning radius, flexible, easy to road transport and into work site, provides a more flexible working space.
| Model | Feeder Model | Crusher Model | Belts | Iron Remover | Frame | Capacity(t/h) | Hydraulic System |
| ZY-1 J100 | GZD3896 | J6S100 | 2 | Configurable | Dual axis | 100-200 | Hydraulic take-off and landing |

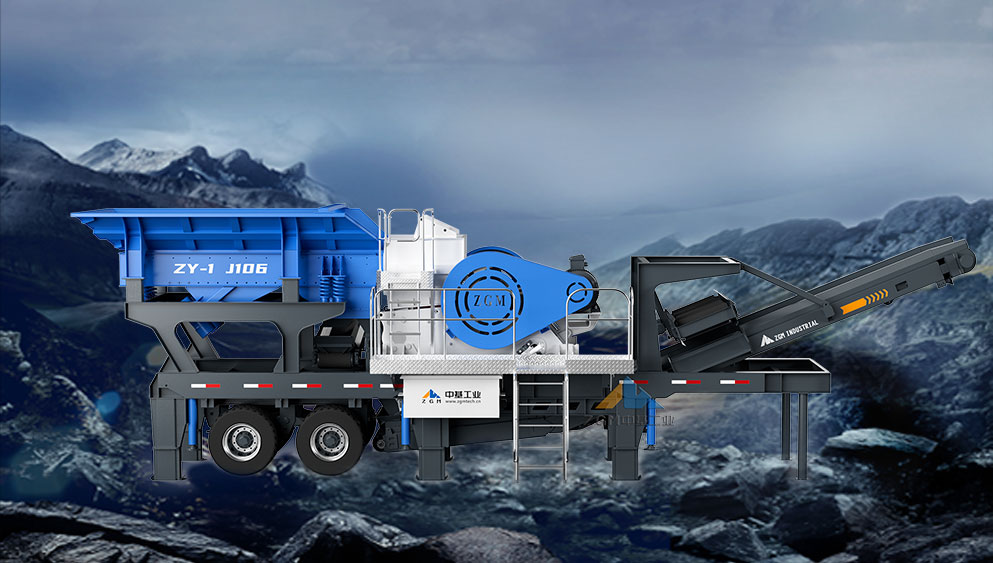

| ZY-1 J106 | GZD4211 | J6S106 | 2 | Configurable | Triaxila | 180-240 | Hydraulic take-off and landing |
| ZY-1 E90 | GZD3896 | PE600×900 | 2 | Configurable | Dual axis | 100-150 | Hydraulic take-off and landing |
| ZY-1 E106 | GZD4211 | PE750×1060 | 2 | Configurable | Triaxila | 150-200 | Hydraulic take-off and landing |
| ZY-1 P1214 | GZD3896 | P6S1214 | 2 | Configurable | Dual axis | 100-200 | Hydraulic take-off and landing |
| ZY-1 P1317 | GZD4211 | P6S1317 | 2 | Configurable | Triaxila | 150-300 | Hydraulic take-off and landing |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
