≤10mm
Feeding size20-160t/h
Capacity7.5-30kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

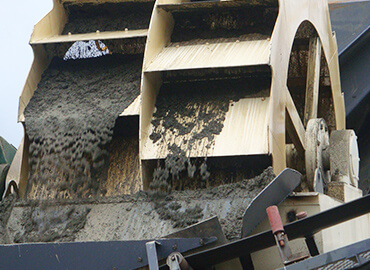

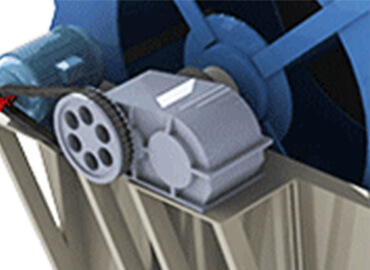

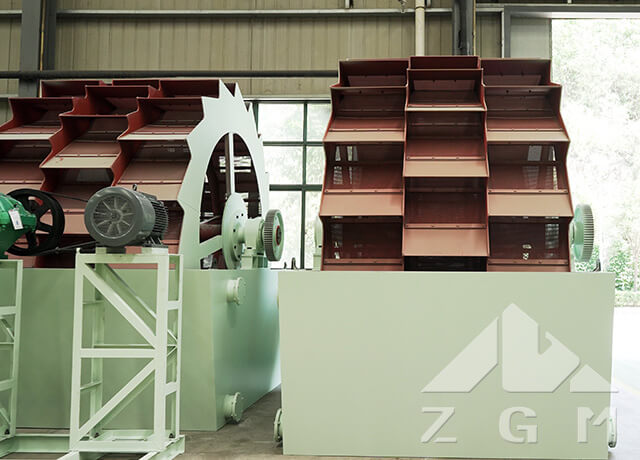

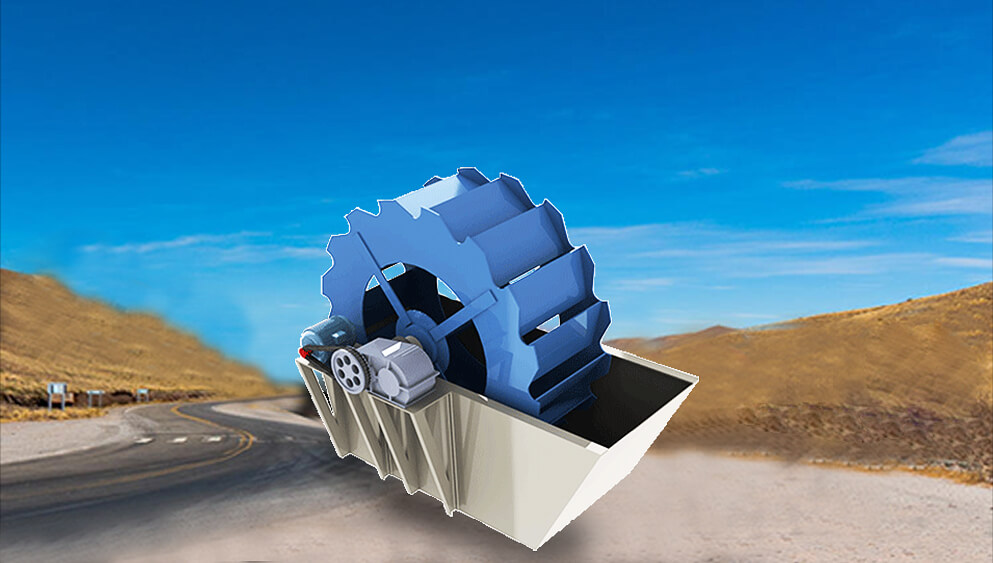

XSD sand washing machine is a kind of high efficiency sand washing equipment,which is used with sand making machine. It can wash stone powder and impurity in the sand made by sand making machine away. XSD series sand washing machine has novel sealing structure and reliable transmission device, which ensures the effect of cleaning and dehydration. It has cleaning height, reasonable structure, large treatment capacity, small power consumption and less sand loss in sand washing process.
Long service life and little maintenance.
There are no wearing parts except sieves.

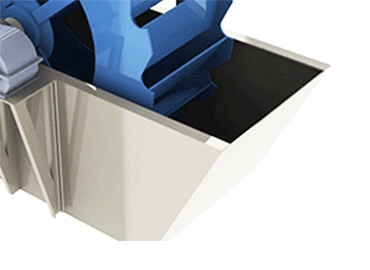

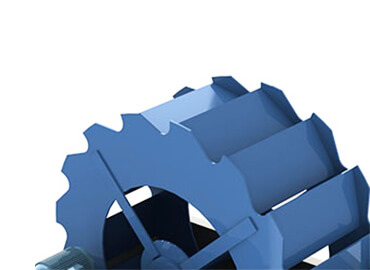

The sand washing machine has simple structure, big gap between impeller transmission bearing system and water as well as raw materials.
Mid-fineness sand seldom lapses out. The grade and fineness of washed build sand can reach required standard.
| Model | XSD-2610 | XSD-2816 | XSD-3016 | XSD-3620 |
| Wheel size(mm) | 2600×1000 | 2800×1600 | 3000×1600 | 3600×2000 |
| Wheel speed(r/min) | 1.178 | 1.177 | 1.179 | 1.15 |
| Capacity(t/h) | 20-50 | 30-60 | 50-120 | 80-160 |
| Max.feeding size(mm) | ≤10 | ≤10 | ≤10 | ≤10 |
| Power(kw) | 7.5 | 7.5-11 | 11-15 | 20-30 |
| Model of gear box | ZQ400-50-I-Z | ZQ650-50-I-Z | ZQ650-50-I-Z | ZQ650-50-I-Z |
| Dimension(mm) | 3600×2116×2690 | 3964×3015×2980 | 3964×3015×3080 | 4624×3443×3680 |
