≤60mm
Feeding size120-640t/h
Capacity(110-315)×2kw
Double motor powerLimestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

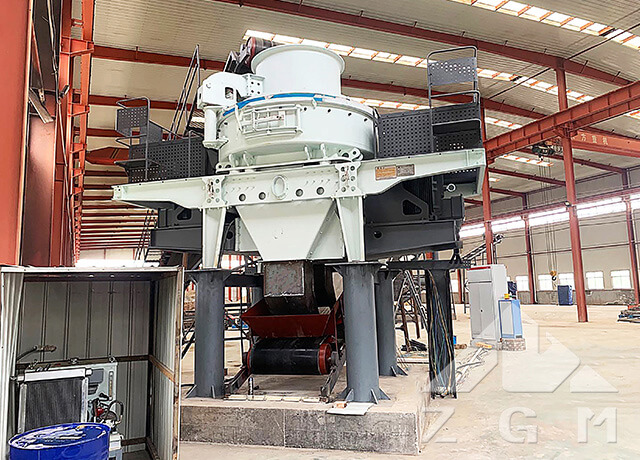

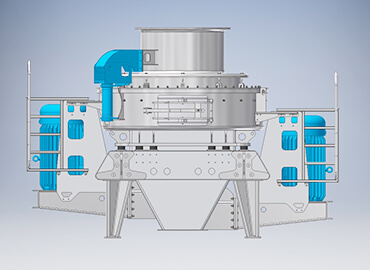

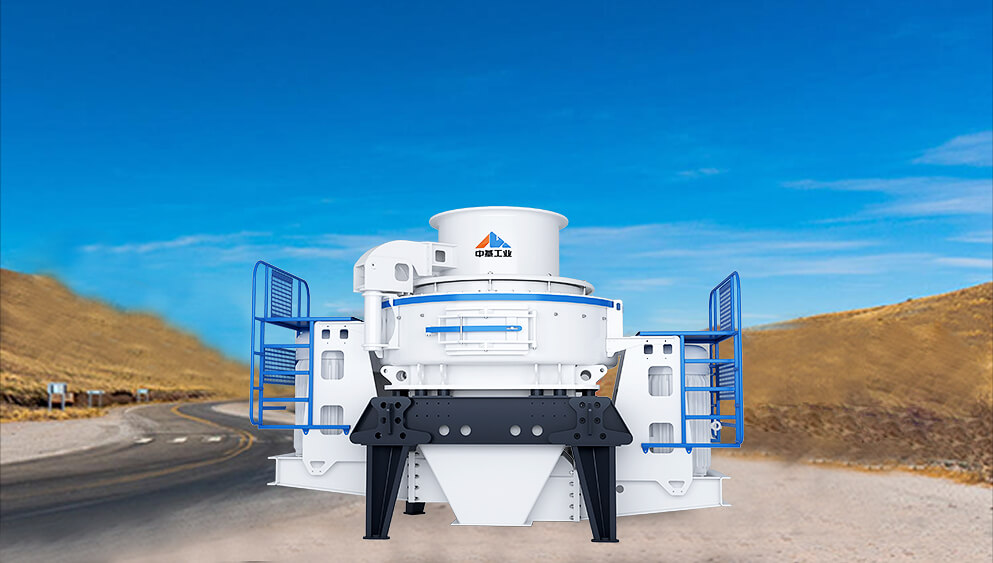

V6S series vertical shaft impact crusher (sand making machine) is based on the original high-performance VSI series and combined with actual running condition under different working conditions as well as operator's feedback. By improving the feeding mode, optimizing the broken cavity, adopting new rotor designs and installing lifting device etc, it reduces flow resistance of stones, increases throughput capacity,reduces wear rate of spare parts,increases utilization ratio,extends maintenance cycle and decreases repair time. Which has the characteristics of energy saving, long service life and wide application, help the sand plants develop to large-scale plants with centralized, environmental protected and capacity requested.

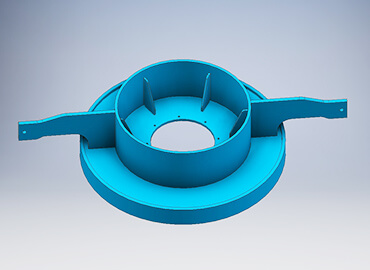

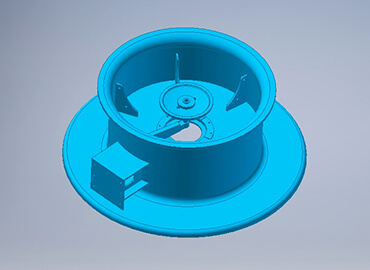

Feed at center and sides is realized by the optimized-design stuff distributor and hydraulic device, convenient to adjust the stuff amount of center feeding and crushes.
Crushing efficiency increases. Optimal emission port and smooth curve design decrease the stone's flow resistance and increase the throughput capacity greatly.
Protecting plates adopt butt joint and exchange up and down after abrasion. It extends the lifespan of wearing parts, reducing the operation cost.
Leakage-proof without oil seal design and multi-pipes lubrication design can lubricate the upper and lower bearings in the meantime, increases bearing lifespan.
Model | V6S8522 | V6S9532 | V6S1040 | V6S1150 | V6S1263 | |
Capacity (t/h) | Central feeding withcircular cascade feeding | 185-290 | 250-340 | 310-440 | 420-550 | 545-640 |
Fully central feeding | 120-200 | 180-280 | 260-380 | 340-460 | 450-580 | |
feeding size (mm) |
Soft material | ≤40 | ≤45 | ≤50 | ≤55 | ≤60 |
Hard material | ≤30 | ≤35 | ≤40 | ≤45 | ≤50 | |
Rotation speed (r/min) | 1500-1700 | 1300-1500 | 1100-1400 | 1000-1300 | 900-1200 | |
Double motor power(kw) | 110×2 | 160×2 | 200×2 | 250×2 | 315×2 | |
voltage | 380V 50Hz | |||||
Monitoring range of Vibration sensor | 0.1-20mm/s Continuous adjustable | |||||
Thin oil lubrication station | Motor power(kw) | 2x0.31 | ||||
Safe Assurance | Double oil pumps assure enough oil supply; Switch off automatically without oil flow or oil pressure. Lower the temperature with cool water in summer raise the temperature with motor in winter. | |||||
Dimension (mm) | 820x520x1270 | |||||
Power of oil TankHeater(kw) | 2 |
