≤25mm
Feeding Size0.8-36t/h
Capacity22-475kw
Power
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

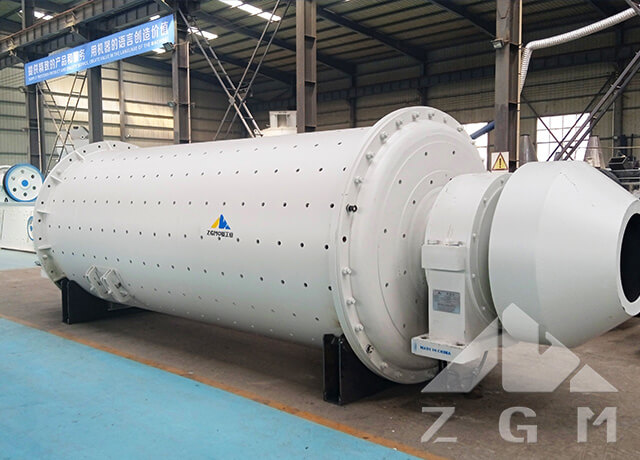

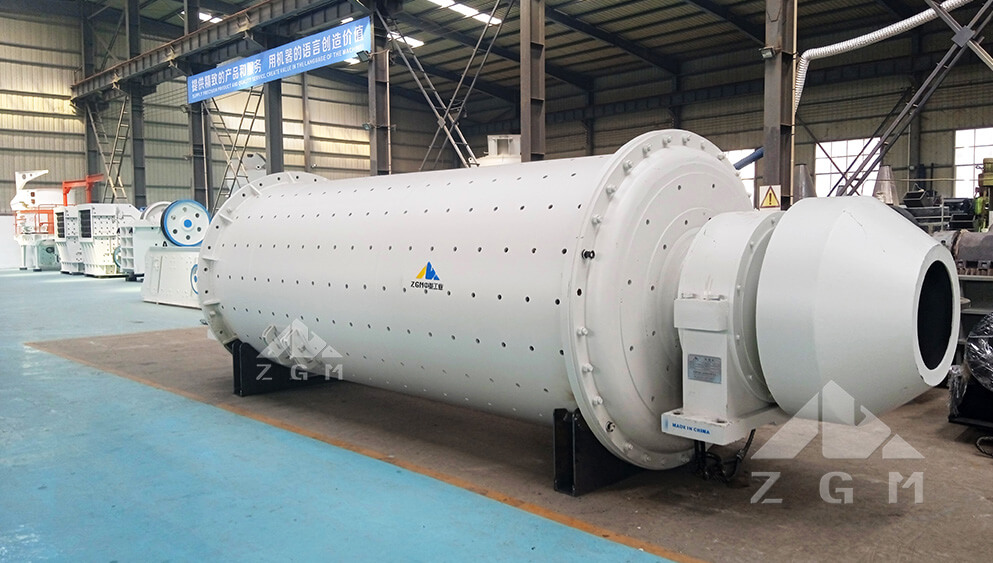

Ball mill is key equipment for the secondary grinding after the primary crushing. The material enters the first warehouse of the mill evenly from the hollow shaft by the feeding device. The warehouse is equipped with a ladder liner or corrugated liner, different specifications of the ball, and the cylinder rotating centrifugal force to bring the steel ball to a certain height after the fall and it has a heavy blow and grinding effect to the material.With rough grinding after in the first warehouse, the material with the secondary grinding in the second warehouse and which has a built-in liner and then it discharged by the discharge grate plate.
The design of discharge is flexible and discharge port is reasonable, can choose iron remover according to needs.

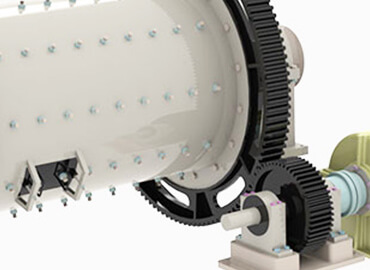

It adopts the unique small gear to drive the big gear, which makes the operation more stable.

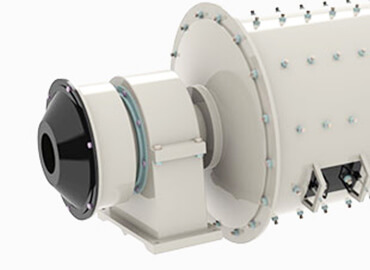

The feeding volume of the feeding part is large, and the reasonable design of the feeding port increases the feeding volume.
The closed system is adopted to reduce the dust. The closed system is formed by the ultra-fine ball mill and the classifier.
| Model | Rotary Speed（r/min） | Ball Weight(t) | Feeding Size（mm） | Output Size(mm) | Capacity(t/h) | Power（kw） | Weight(t) |
| Φ900×3000 | 35.6 | 2.4 | ≤25 | 0.075-0.89 | 0.8-2.5 | 22 | 5.3 |
| Φ1200×3000 | 32.4 | 4.5 | >≤25 | 0.074-0.4 | 1.6-3 | 37 | 12.1 |
| Φ1200×4500 | 32.4 | 7 | ≤25 | 0.074-0.4 | 1.83-3.9 | 55 | 13.1 |
| Φ1500×3000 | 29.7 | 7.5 | >≤25 | 0.074-0.4 | 2.8-4 | 75 | 14.8 |
| Φ1500×4500 | 29.7 | 11 | ≤25 | 0.074-0.4 | 4.8-7 | 110 | 19.9 |
| Φ1500×5700 | 29.7 | 14 | >≤25 | 0.074-0.4 | 5-8 | 130 | 23.4 |
| Φ1500×7000 | 29.7 | 17 | ≤25 | 0.074-0.4 | 6-8 | 155 | 27.5 |
| Φ1830×3000 | 25.4 | 11 | >≤25 | 0.074-0.4 | 4.5-10.5 | 130 | 26.6 |
| Φ1830×4500 | 25.4 | 17 | ≤25 | 0.074-0.4 | 6.8-11.5 | 155 | 30.4 |
| Φ1830×6400 | 25.4 | 24 | >≤25 | 0.074-0.4 | 7-12 | 210 | 32.3 |
| Φ1830×7000 | 25.4 | 26 | ≤25 | 0.074-0.4 | 7.8-13.8 | 245 | 34.2 |
| Φ2100×3000 | 24.9 | 15 | >≤25 | 0.074-0.4 | 5.8-14 | 210 | 32.3 |
| Φ2100×4500 | 24.9 | 23 | ≤25 | 0.074-0.4 | 9.5-18 | 245 | 40 |
| Φ2400×3000 | 20.8 | 20 | >≤25 | 0.074-0.4 | 7.8-18 | 245 | 51.3 |
| Φ2400×4500 | 20.8 | 30 | ≤25 | 0.074-0.4 | 13.7-28 | 380 | 63.7 |
| Φ2700×4000 | 19.5 | 34 | >≤25 | 0.074-0.4 | 15-28 | 475 | 89 |
| Φ2700×4500 | 19.5 | 39 | ≤25 | 0.074-0.4 | 16.5-36 | 475 | 97 |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
