≤20mm
Feeding Size325-3250Mesh
The Final Size21-44
No.of Roller
Limestone
Basalt
Granite
Cobblestone
Construction
Power plant
Dry mixing
Chemica
Construction
Mining

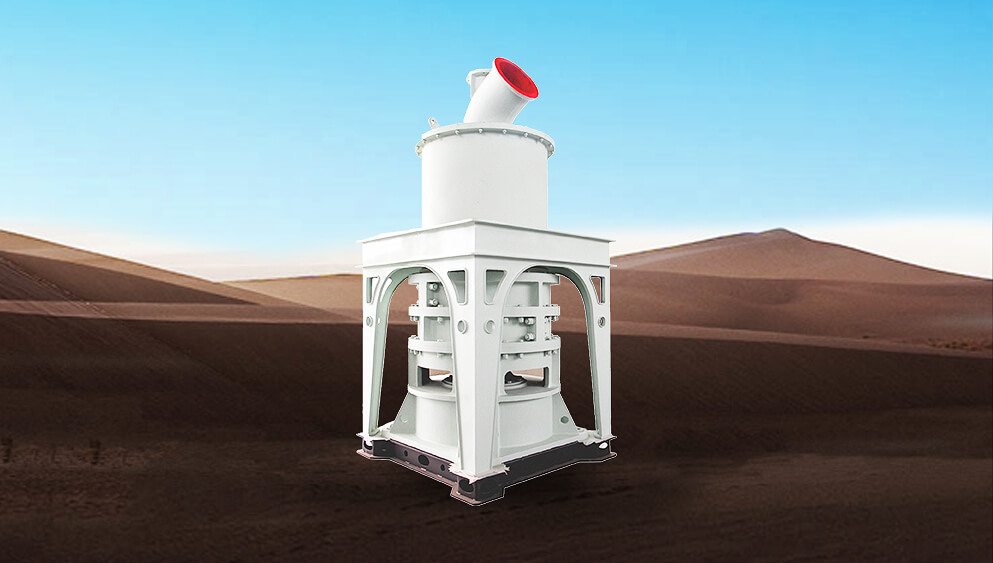

HGM Series Three-rings (Four-rings) Micro-Powder Grinder Mill is a new type of high efficient fine powder and ultrafine powder processing equipment, which is by our technology research and development center through introducing advanced foreign technology and develops for years of concentrated innovation research and design transformation. This type grinding mill is mainly suitable for grinding nonflammable and non-explosive brittle materials with low and middle hardness (mohs hardness < 6) and moisture content less than 5%.

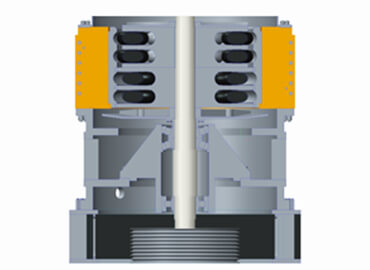

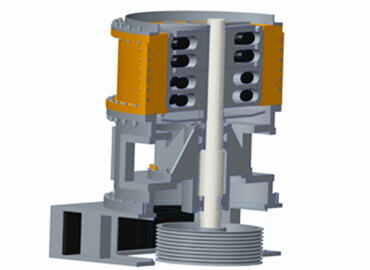

The equipment adopts the innovative comminution structure of multi-layer and multi grinding channel.
Forged by special material, the ring and roller can be used for about one year while grinding calcium carbonate.
The damping spring and sealing belt can reduce the vibration and noise and avoid the resonance between mill and classifier.
Compared with jet mill, mixing grinder and ball mill of same finished product size,HGM Micro-Powder Mill has double capacity and saves energy.
| Model | HGM80 | HGM100 | HGM125 | HGM168 | |
| No.of Roller and Ring | No.of Roller (Pcs) | 21 | 28 | 32-36 | 40-44 |
| No.ofRing (Pcs) | 3 | 4 | 4 | 4 | |
| Input | The Feeding Size(mm) | ≤20 | |||
| Capacity(Kg/h) | 500-5000 | 1000-8500 | 1500-12000 | 5000-25000 | |
| The Final Size | Micron | 45-3 | |||
| Mesh | 3250-325 | ||||
| Motor Power (KW) | Main Mill | 55-75 | 132-150 | 185-220 | 315 |
| Classifier | 18.5 | 37 | 55 | 18.5x5 | |
| Air Blower | 45 | 75 | 132 | 160 | |
| Screw Conveyer | 2.2 | 2.2 | 3 | 4 | |
| Discharge Valve | 2x0.75 | 1.1 | 1.5 | 2/1.5 | |
| Air Compressor | 7.5 | 15 | 22 | 30 | |
| Overall Dimension(Length*Width*Height)(M) | 13.9x4x6.2 | 18x4.6x8.6 | 14x9 x 10.25 | 26.3x7.5x11.9 | |
A professional team deeply understands customer needs and recommends suitable products to customers
After signing the order, provide the demand form to the facilities department and count the categories before leaving the factory
Inventory of required components for equipment, technical protocol comparison inspection, and process testing
Before the delivery of the complete set of equipment, installation, debugging, and self inspection must be completed
Standardize equipment installation, debugging, and maintenance work to ensure personal and equipment safety
