river stone
Raw Materials70-80t/h
Capacitythree
Finished products
Power
Dry Mix
Chemica
Construction
Mining
Raw Materials: pebbles/river stone
Capacity: 70-80 tons/hour
Finished products: 0-5mm, 5-20mm, 20-40mm three granularity range
Main equipment:Vibrating feeder ZSW3090; Jaw Crusher PE500*750;Three cavity Impact Crusher: PFV1010;Vibrating screen: YS1548

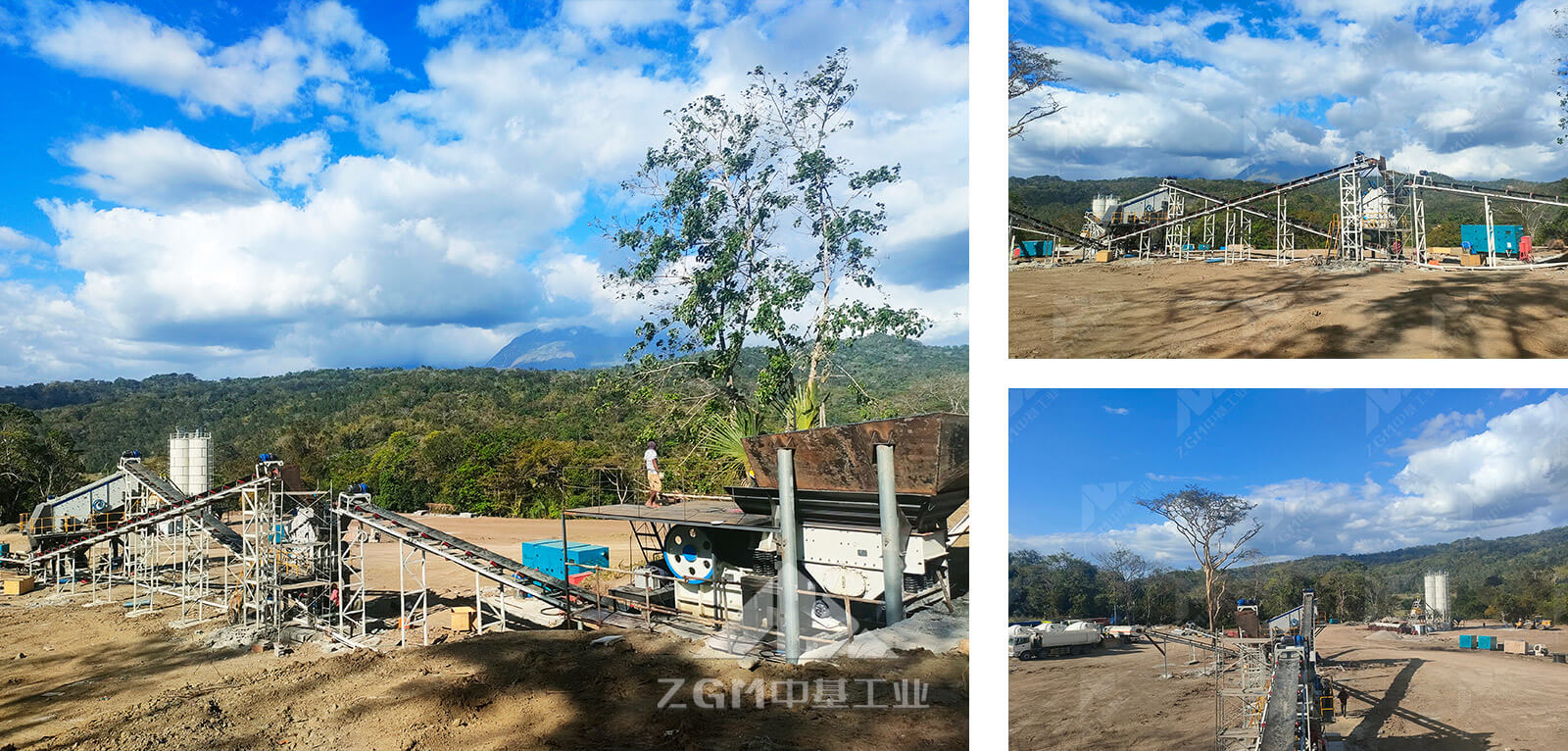

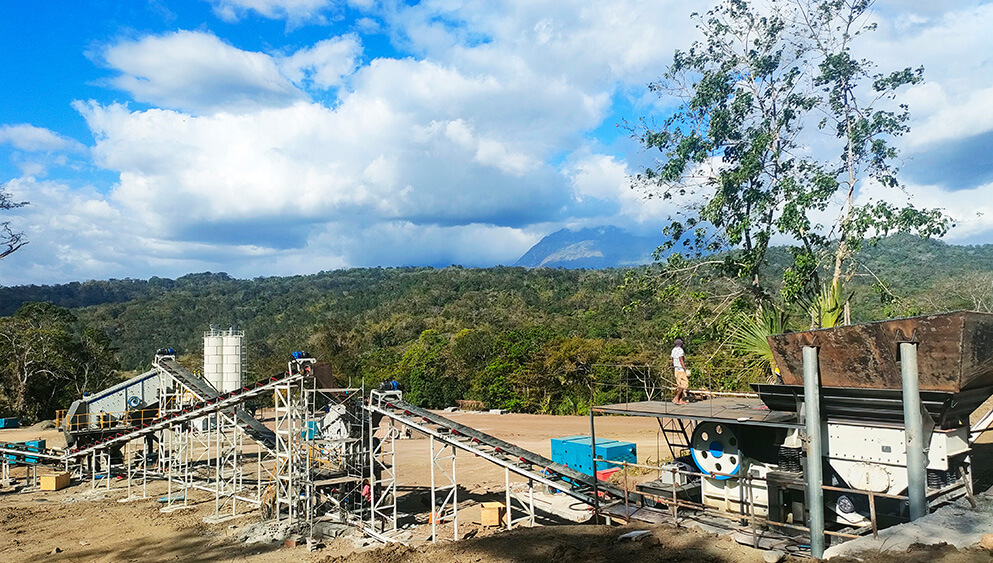

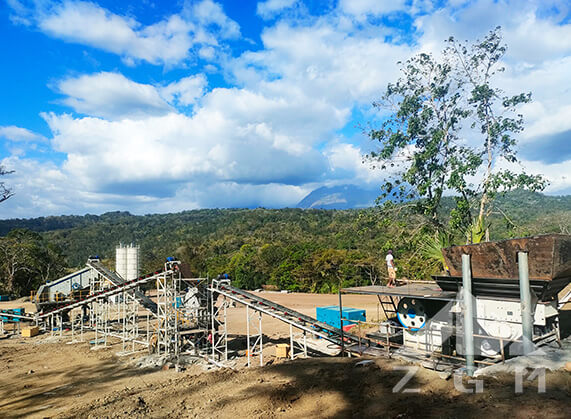

Production status: The project is located in East Timor and the raw material processed is river stone. River stone is one kind of silicate mineral with hard, wear-resistant texture and stable chemical properties. River stone has abundant resources, relatively low collection cost and high application value. Based on the material characteristics of river stone and the production requirements of customers, ZGM Industrial has planned and designed a crushing sand production line with production of 70-80 tons per hour. At the same time, three specifications of finished materials are produced, respectively, 0-5mm sand and 5-20mm, 20-40mm aggregate. The finished material will meet the use needs of high grade concrete, serve the local infrastructure construction, and the sand and stone co-production improves the comprehensive utilization rate of the material.
The material is rough broken by the jaw crusher PE500*750, the equipment adopts high quality material finishing, can withstand strong impact; Optimized deep cavity structure, crushing strength is outstanding; The overload protection mechanism ensures the smooth operation of the equipment. The coarse material produced is transported to PFV1010 by conveyor for the second fine crushing. The impact crusher adopts high wear-resistant material blow bar, which has a longer service life. Equipped with self-weight safety device, so that the crusher runs more stable. The stone after secondary crushing enters the vibrating screen YS1548 to separate out two kinds of stones, the stones that meet the finished particle size are transported to the finished material pile by the belt conveyors, and the other part of the material is returned to the impact crusher for reprocessing.
Discharge port adjustment device is safe and fast. The hydraulic wedge type discharge port adjusting device is used to adjust the size of the discharge port conveniently and improve the maintenance automation. The system is convenient to operate and shorten the downtime when the equipment stops with load due to power supply interruption.
Self-weight type safety device. When non-crushing materials (such as iron blocks) enter the crushing chamber, the equipment can be automatically discharged and reset to avoid the risk of equipment overload and the loss caused by shutdown maintenance.
Optional thin lubrication type, so as to completely solve the bearing heating and other problems, so that the main shaft bearing to maintain a constant temperature, extend the maintenance cycle and service life.
Simple structure, strong load, easy installation and maintenance and low cost. At the same time, the main machine can prevent dust pollution
ZGM Industry provides you with a complete set of mining equipment and services. If you are interested in our company and products, you are welcome to visit the factory area. We will arrange on-site visits for you to experience the quality of the discharge materials intuitively!
